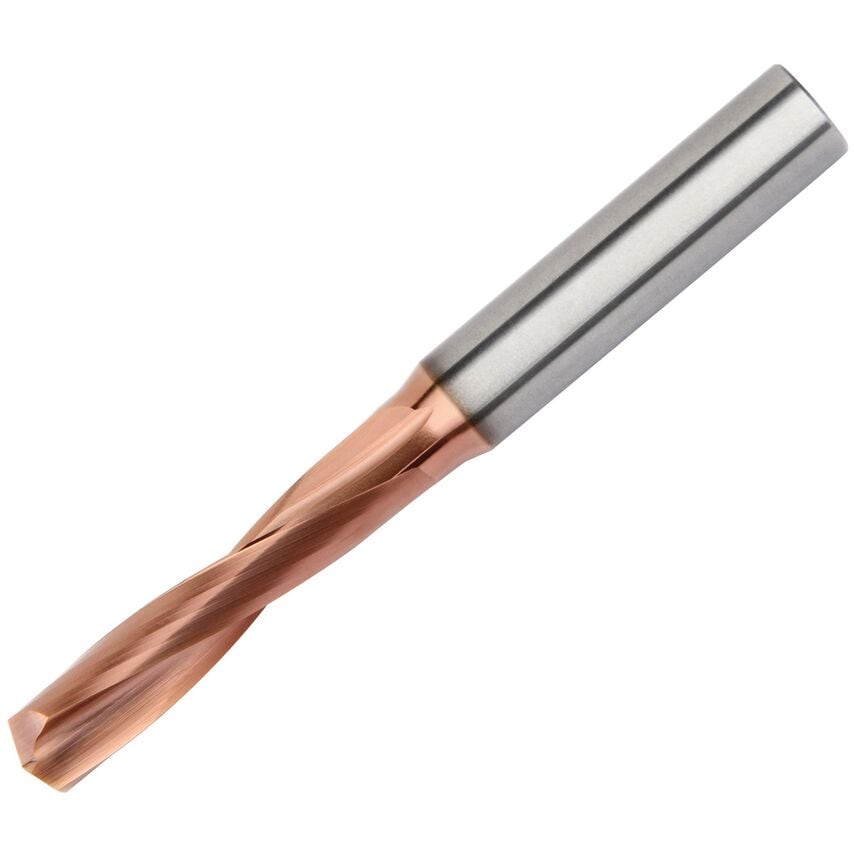

KMH Drills Hard Materials Without CoolantHigh-Performance Solid Carbide Drills

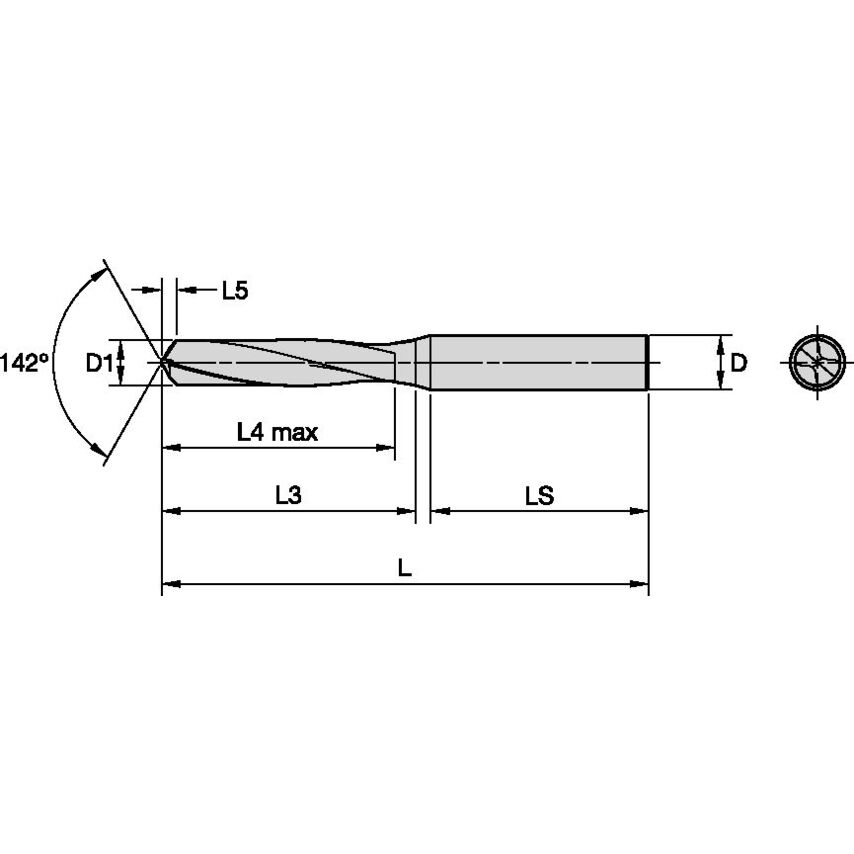

| Adapter / Shank / Bore Diameter | 12.0000mm |
| Adapter Type | Cylindrical |
| Finish/Coating | AlTiSiN |
| MFR Part No. | 6358997 |
| Unit Measured | Metric |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Helix Angle | 15.000 |
| Primary Material | Hardened Materials |
| Material | Carbide |
| Overall Length | 102mm | 102.0000mm |
| Drill Diameter | 11.1000mm |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Length | 55mm | 55.0000mm |
| Assembly Length | 58.01mm |
| Shank Length | 45.0000mm |
| Drill Point | 1.99mm |
| Coolant Supplied | No |
| Drill Depth | 35mm | 35.0000mm |
| Functional Length | 100.0100mm |
| Helix Type | Right Hand Helix/Flute |
| Number of Flutes | 2 |
