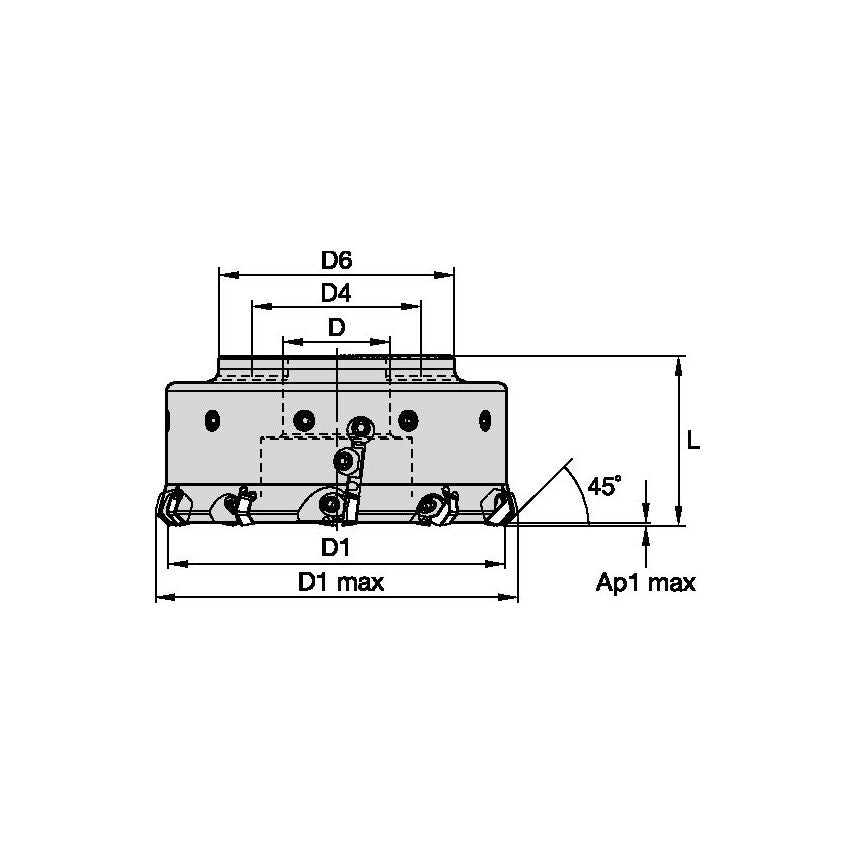

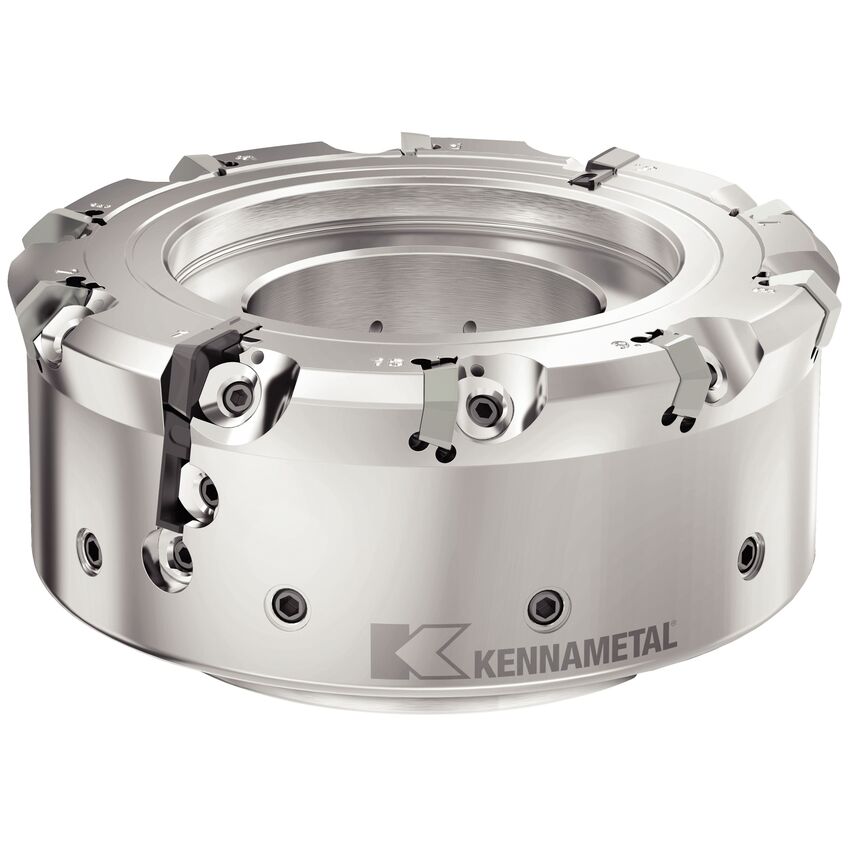

KCFM 45 Shell Mill Cutter Fine FinishingFace Milling
| Number of Flutes | 16 |
| Adapter Type Machine Side | Shell Mill |
| Body Diameter Max | 207mm |
| Unit Measured | Metric |
| Coolant Supplied | Yes |
| Body Material | Steel |
| Maximum Cutting Diameter | 209.53mm |
| Center Cutting Tool | No Center Cutting |
| Hand Preference | Right |
| Insert Shape | H-Hexagon 120 |
| Clamp Type | Wedge Clamp Before Insert |
| Milling Application | Face Mill |
| Max. Depth of Cut | 1.0900mm |
| MFR Part No. | 6224412 |
| Number of Inserts | 16 |
| Hub Diameter | 130mm | 130.0000mm |
