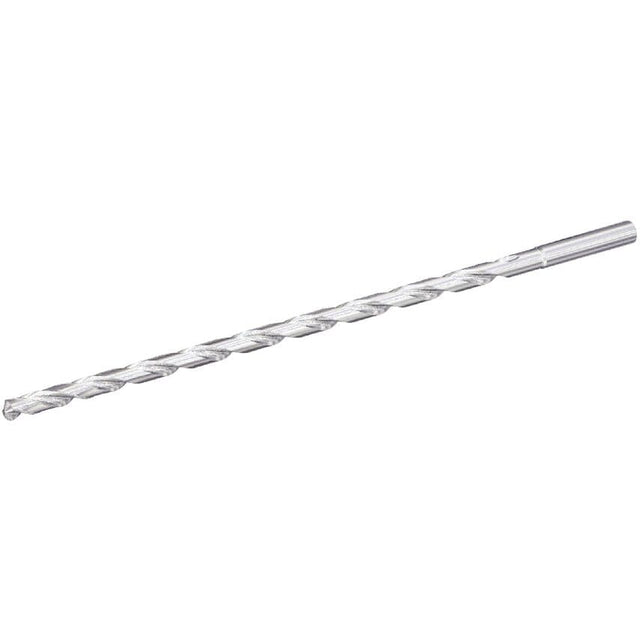

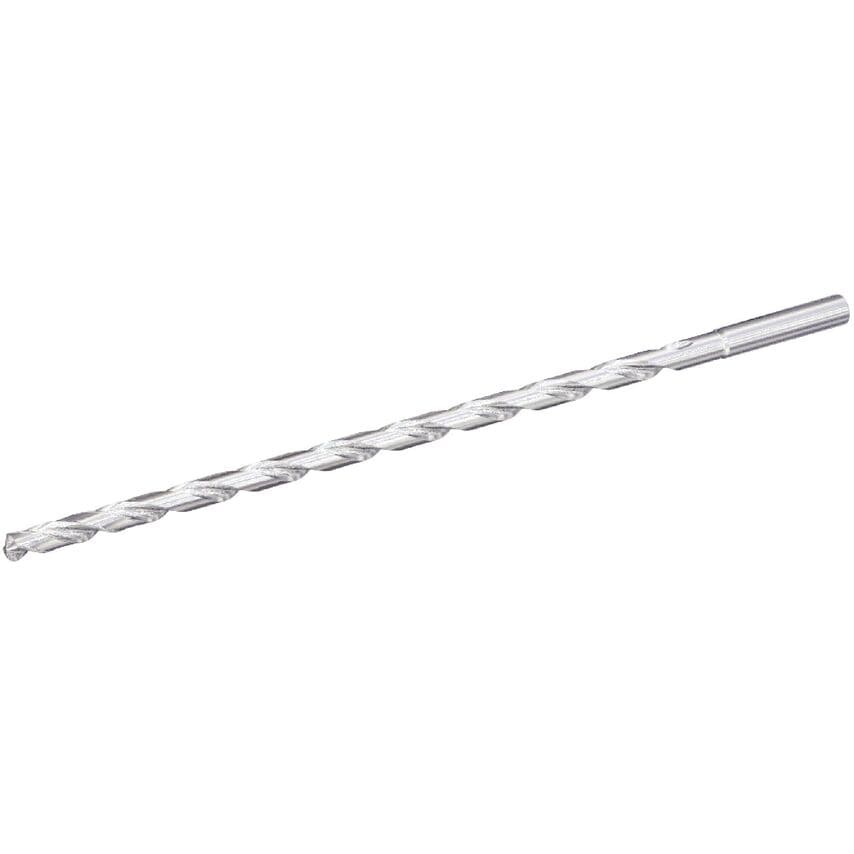

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| Flute Construction | Helical Flute |
| Adapter Type | Cylindrical |
| Primary Material | Steel |

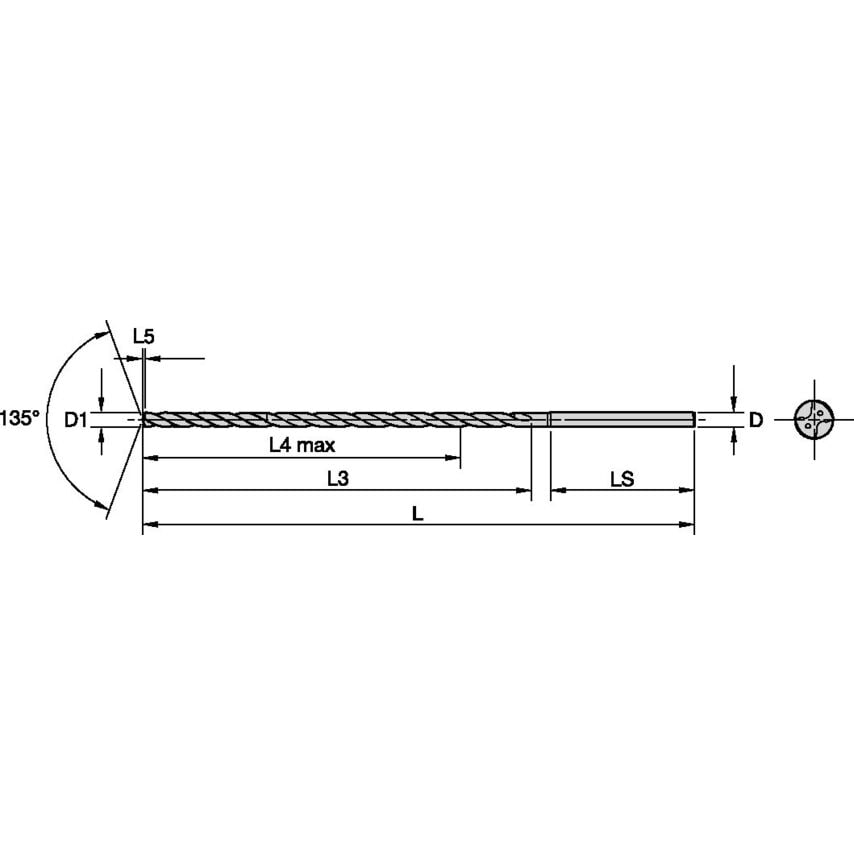

| Shank Length | 38.0000mm |
| Assembly Length | 203.9mm |
| Drill Depth | 169mm | 169.0000mm |
| Flute Length | 184mm | 184.0000mm |
| Overall Length | 232mm | 232.0000mm |
| Number of Flutes | 2 |
| MFR Part No. | 6351216 |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Adapter / Shank / Bore Diameter | 7.0000mm |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Drill Point | 1.1mm |
| Coolant Supplied | Yes |
| Drill Diameter | 6.5000mm |
| Functional Length | 230.9000mm |
| Helix Angle | 28.196 |
| Coolant Diameter | 0.8500mm (0.0882in) |
