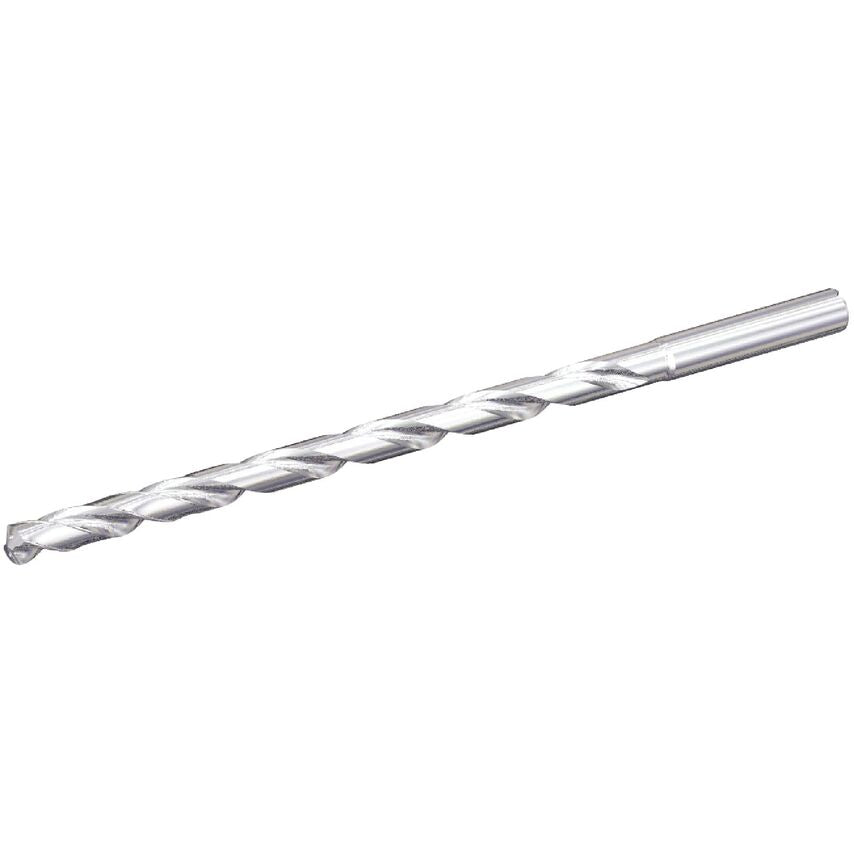

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Shank Length | 38.0000mm |
| Functional Length | 160.8500mm |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 7.0000mm |
| Primary Material | Steel |
| Number of Flutes | 2 |
| MFR Part No. | 6351212 |
| Overall Length | 162mm | 162.0000mm |
| Coolant Diameter | 0.8500mm (0.0630in) |
| Material | Carbide |
| Flute Construction | Helical Flute |
| Drill Depth | 104mm | 104.0000mm |
| Flute Length | 120mm | 120.0000mm |
| Helix Angle | 29.091 |
| Drill Point | 1.15mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Drill Diameter | 6.7460mm |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Assembly Length | 133.85mm |
