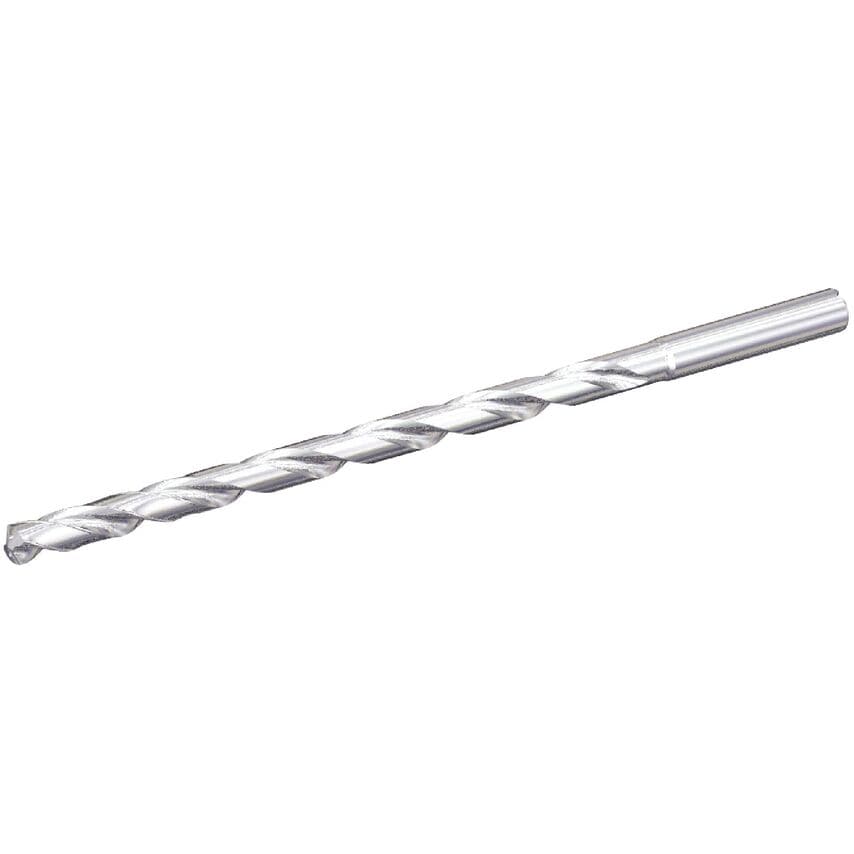

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Shank Length | 40.0000mm |
| Coolant Supplied | Yes |
| Coolant Diameter | 0.9900mm (0.0335in) |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 7.9375mm |
| Overall Length | 181mm | 181.0000mm |
| Flute Length | 138mm | 138.0000mm |
| Flute Construction | Helical Flute |
| Functional Length | 179.6500mm |
| Unit Measured | Metric |
| Finish/Coating | Uncoated |
| Drill Depth | 120mm | 120.0000mm |
| Hand Preference | Right |
| Assembly Length | 152.65mm |
| Helix Angle | 29.806 |
| Adapter Type | Cylindrical |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Material | Carbide |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| MFR Part No. | 6351224 |
| Drill Point | 1.35mm |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 8.0000mm |
