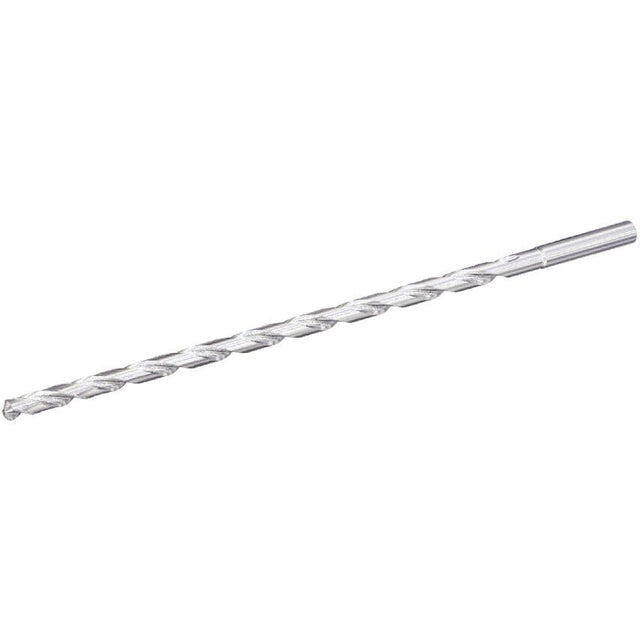

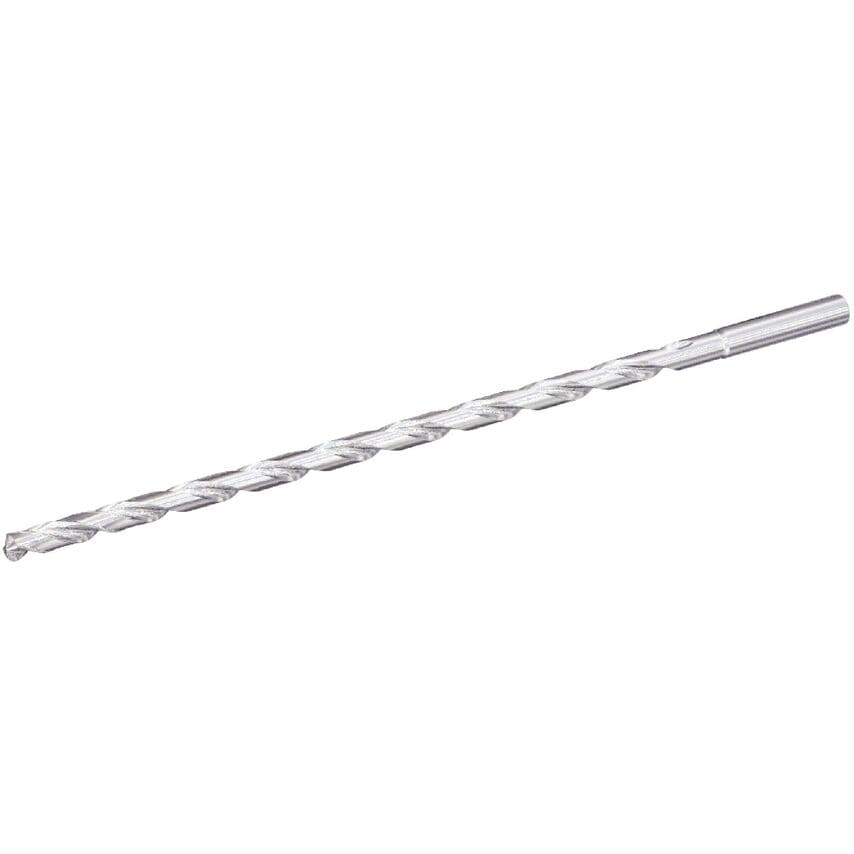

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| Shank Length | 42.0000mm |
| Unit Measured | Metric |
| Primary Material | Steel |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Functional Length | 288.4700mm |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Flute Length | 245mm | 245.0000mm |
| Adapter Type | Cylindrical |
| Drill Depth | 225mm | 225.0000mm |
| Adapter / Shank / Bore Diameter | 9.0000mm |
| Overall Length | 290mm | 290.0000mm |
| Number of Flutes | 2 |
| Drill Diameter | 9.0000mm |
| Assembly Length | 251.945mm |
| Helix Angle | 30.001 |
| Finish/Coating | Uncoated |
| Flute Construction | Helical Flute |
| MFR Part No. | 6351228 |
| Drill Point | 1.53mm |
| Coolant Diameter | 1.1300mm (0.0441in) |
