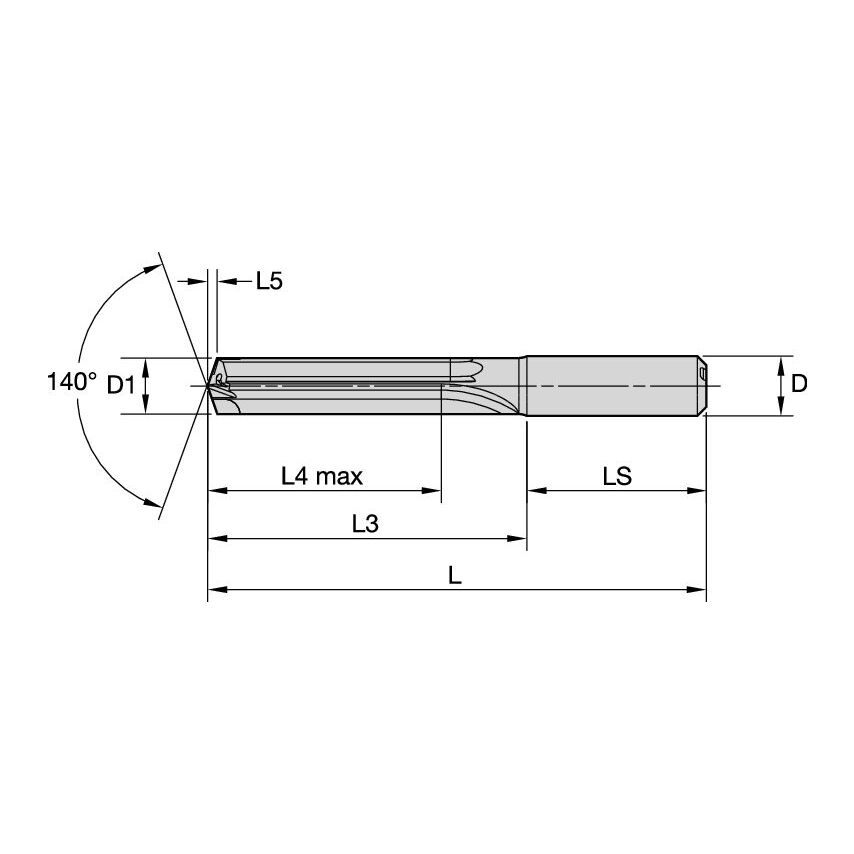

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Assembly Length | 64.955mm |
| Primary Material | Non-Ferrous Materials |
| MFR Part No. | 6761174 |
| Flute Construction | Straight Flute |
| Drill Depth | 49mm | 49.0000mm |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Overall Length | 103mm | 103.0000mm |
| Drill Point | 1.52mm |
| Finish/Coating | Uncoated |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Shank Length | 40.0000mm |
| Coolant Supplied | Yes |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Drill Diameter | 9.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 61mm | 61.0000mm |
| Hand Preference | Right |
| Functional Length | 101.4800mm |
