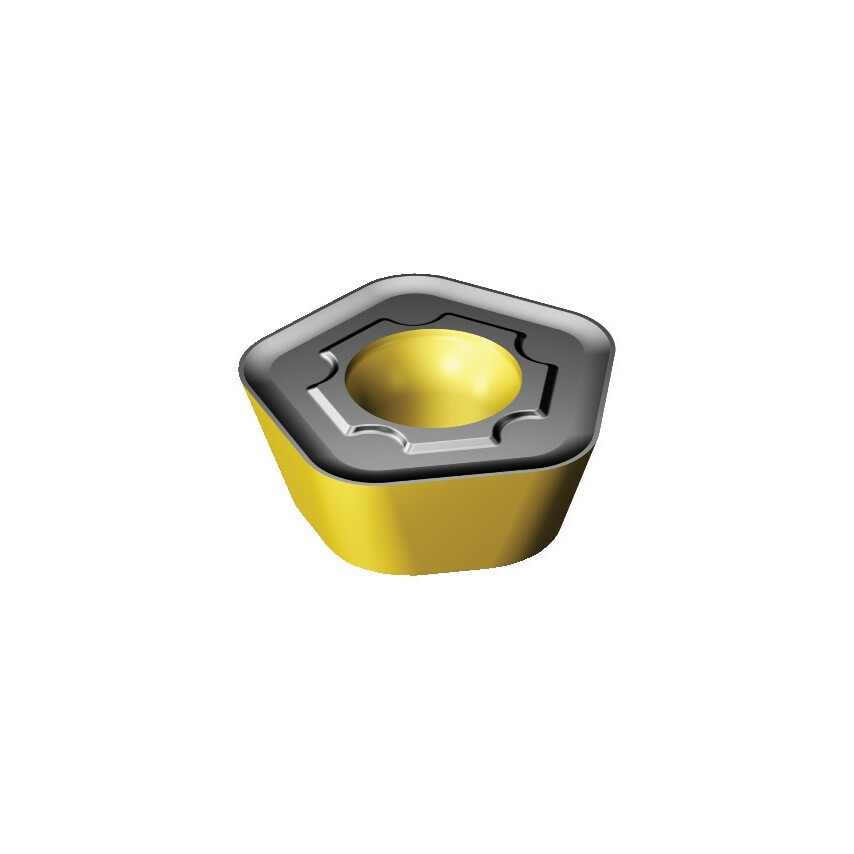

Part of the CoroMill 419 series, these pentagonal milling inserts are suited for roughing and semi-finishing applications on steel and cast iron materials. The high feed milling concept and light-cutting action makes for robust and easy functionality. Manufactured from grade 4340 carbide with a TiCN, Al2O3 and TiN coating, the inserts are resilient.
Features and Benefits
Manufactured from grade 4340 carbide for overall strength
Finished with a TiCN, Al2O3 and TiN coating for bolstered longevity
Part of the CoroMill 419 series that offers high feed, light cutting action
Available in varying sizes and specifications to suit your needs
Typical Applications
Suited for use on cast iron as well as steels including stainless steel

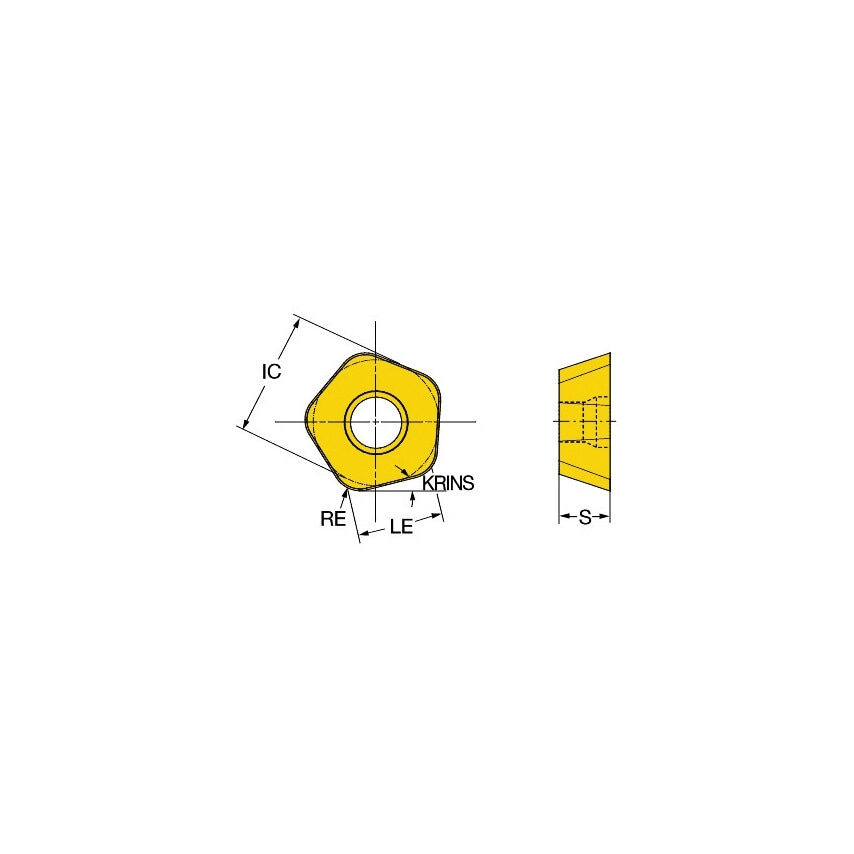

| Finish/Coating | TiCN+Al2O3+TiN |
| Inscribed Circle | 13.5mm |
| Thickness | 5.47mm |
| Insert Size | 1405 |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.0mm |
| MFR Part No. | 7323223719102 |
| Material | Carbide |
| Manufacturer Grade | 4340 |
| Series | CoroMill 419 |
| Corner Radius | 3.0mm |
| Chipbreaker | SM |
| ISO Designation | 419N-140530E-SM 4340 |
| Shape | Pentagon |
