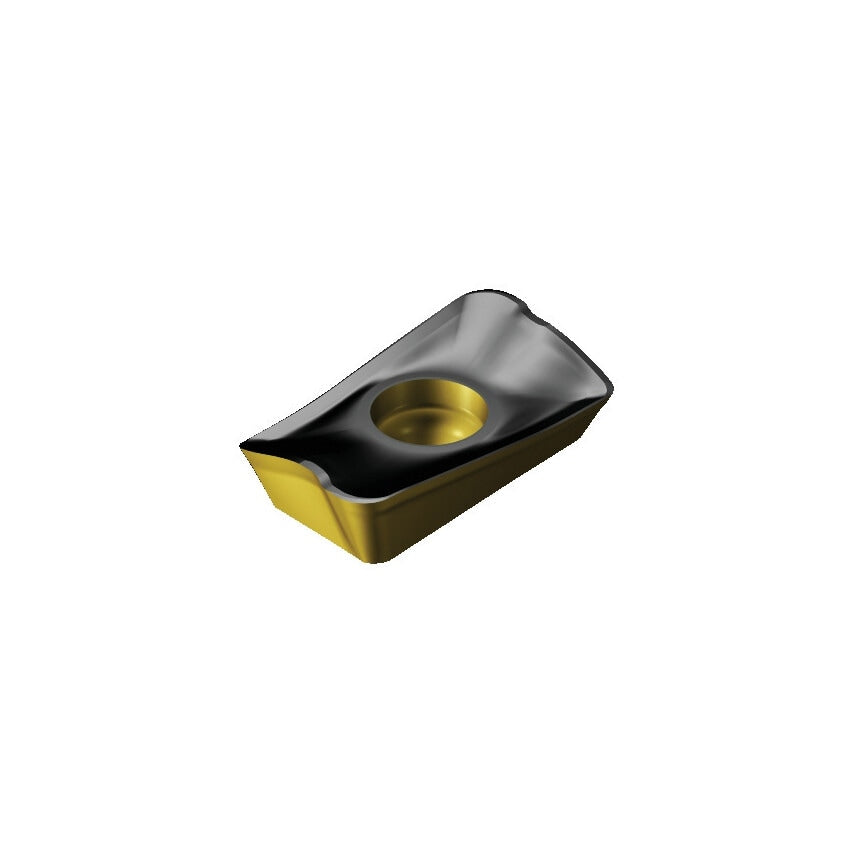

This CoroMill 390 milling insert is manufactured from grade 4330 carbide and finished with a TiCN, Al2O3 and TiN coating. Suited for millng steel and cast iron, the insert boasts a light cutting geometry.
Features and Benefits
Part of the CoroMill 390 series which has a through coolant system and a light cutting geometry
Finished with a TiCN, Al2O3 and TiN coating for durability
Manufactured from grade 4330 carbide for strength
Typical Applications
Suited for use when milling steel and cast iron

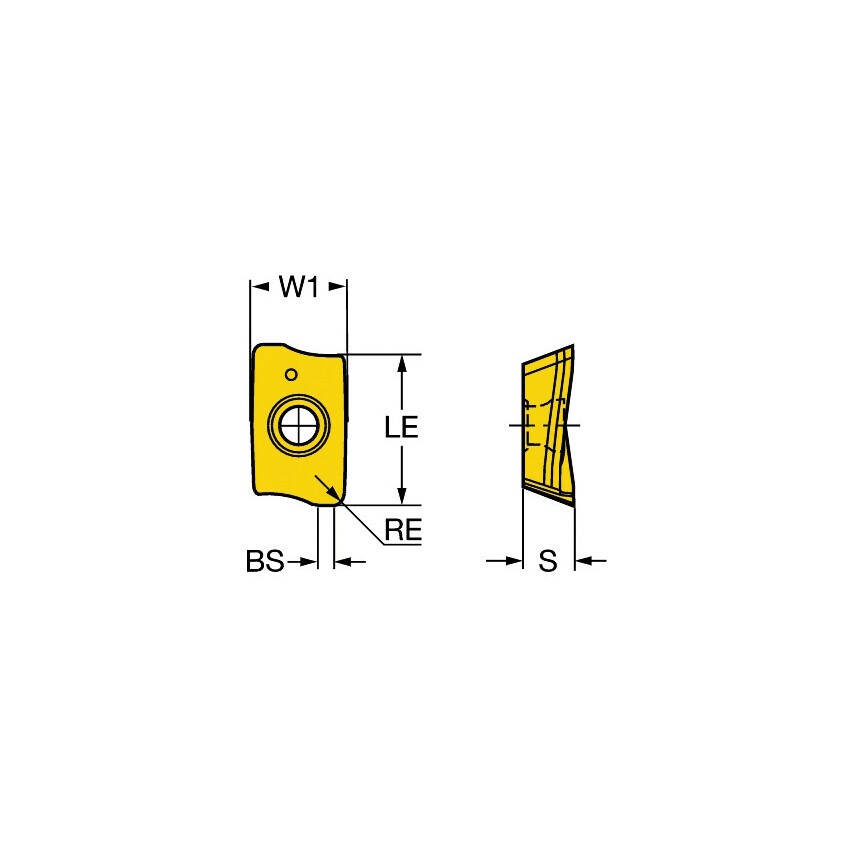

| Chipbreaker | PM |
| Series | CoroMill 390 |
| Insert Size | CoroMill 390 -11T3 |
| Thickness | 3.59mm |
| Material | Carbide |
| ISO Designation | R390-11 T3 08M-PM 4330 |
| Cutting Edge Length | 10mm |
| Manufacturer Grade | 4330 |
| MFR Part No. | 7323223717979 |
| Cutting Direction | Right Hand |
| Corner Radius | 0.8mm |
| Finish/Coating | TiCN+Al2O3+TiN |
