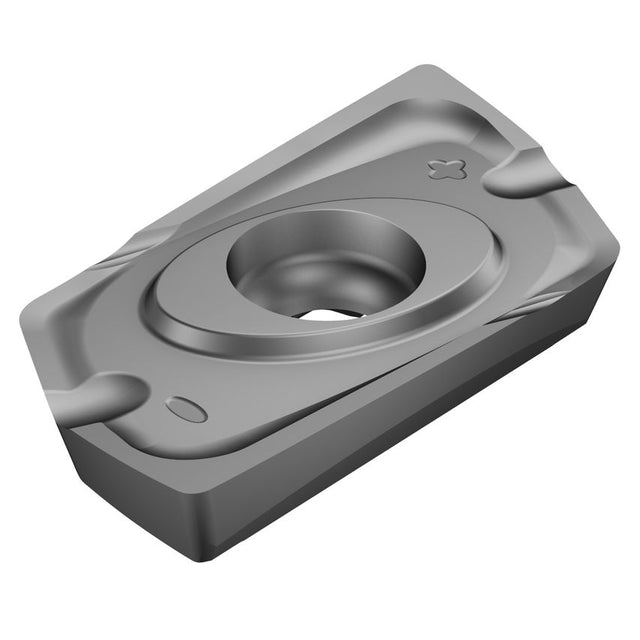

Product Range: CoroMill 790Tool Type: Shoulder millingShoulder milling cutters for aluminiumThe CoroMill 790 cutter is the first choice for ISO N materials. To be used in shoulder operations as a "super remover", it is designed for high security demands and high precision work.Features & Benefits- First choice for aluminium- 2 cutting edges- Serrated interface for precision and high-speed machining- Large radius assortment- Internal coolant
| Finish/Coating | Uncoated |
| CoroPak | 5.2 |
| Wiper Edge Length | 1mm |
| Fixing Hole Diameter | 4.1mm |
| ISO Cutting Tool Material | Uncoated WC grain size >=1 |
| Cutting Edge Count | 2 |
| Maximum Cutting Depth | 12mm |
| Coating Type | Uncoated |
| Unit Measured | Metric |
| Insert Style | Screw/Clamp |
| Grade | H13A |
| Hand Preference | Right |
| Maximum Depth of Cut | 12mm |
| Coating Process Type | Uncoated |
| Insert Thickness | 4mm |
| Corner Radius | 3.1mm |
| MFR Part No. | 5748563 |
| Insert Size/Shape | CoroMill 790 -1604 |
| Insert Width | 11mm |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
