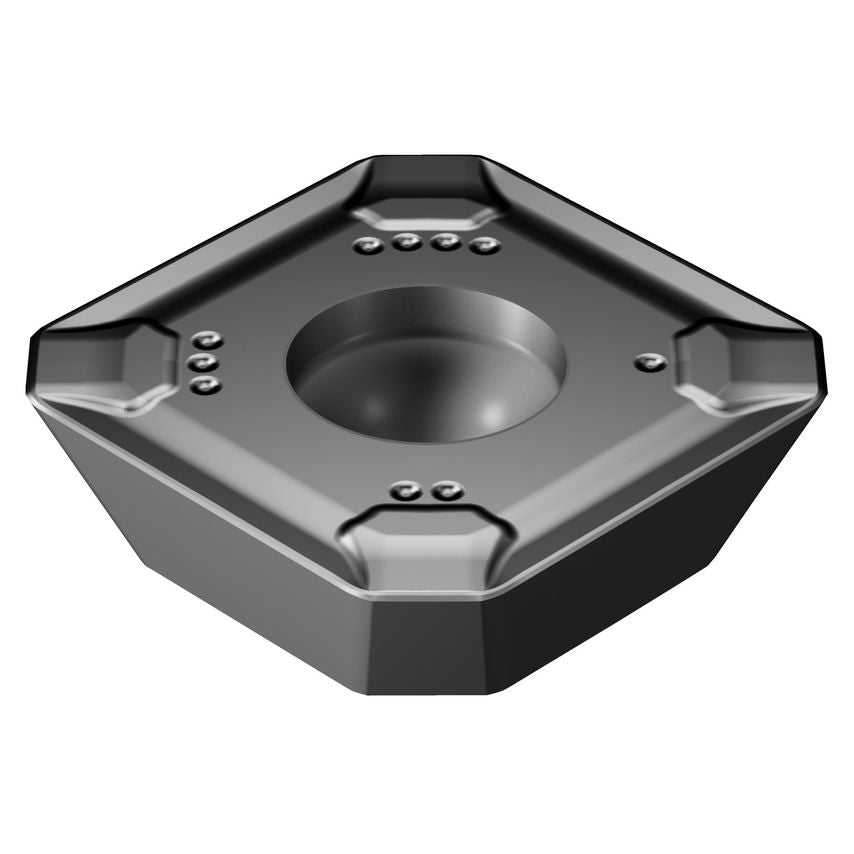

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Grade | 1040 |
| Insert Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Cutting Edge Count | 4 |
| Hand Preference | Right |
| Insert Shape | Square |
| Insert Rake Angle | 15\u00b0 |
| Fixing Hole Diameter | 4.1mm |
| Finish/Coating | TiAlN |
| Weight | 6.5g |
| Corner Radius | 1.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Thickness | 3.96875mm |
| MFR Part No. | 5908390 |
| Inscribed Circle | 13.4mm |
| CoroPak | 10.2 |
| Wiper Edge Radius | 200mm |
| Coating Type | TiAlN |
| Insert Mounting Style | Screw/Clamp |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Wiper Edge Length | 2.1mm |
| Maximum Cutting Depth | 6.5mm |
| Inscribed Circle Diameter | 13.4mm |
| Maximum Depth of Cut | 6.5mm |
