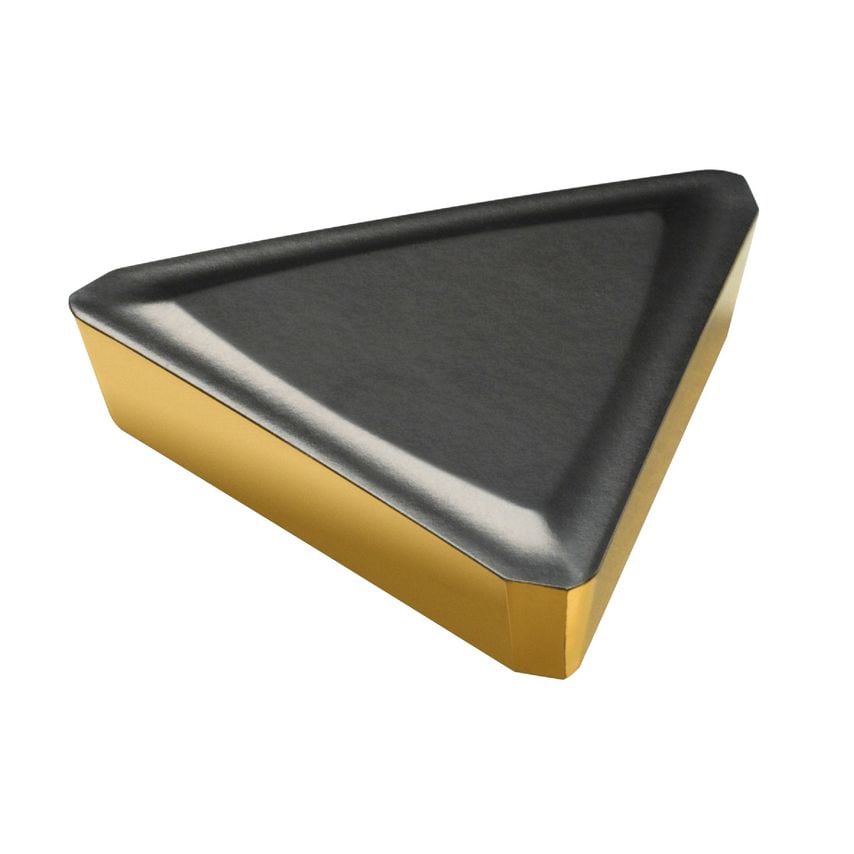

ModulMill - Insert for milling
| Coating Type | TiCN+Al2O3+TiN |
| Through Hole Function Property | Yes |
| MFR Part No. | 5755055 |
| Insert Size/Shape | TP2204PD |
| Unit Measured | Metric |
| CoroPak | 9.1 |
| Grade | 4230 |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Shape | Triangle |
| Weight | 12.1g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | CVD |
| Inscribed Circle Diameter | 12.7mm |
| Cutting Edge Length | 1.2mm |
| Hand Preference | Right |
| Insert Mounting Style | Clamp |
| Wiper Edge Length | 1.2mm |
| Cutting Edge Count | 3 |
| Insert Style | Clamp |
| Inscribed Circle | 12.7mm |
| Insert Thickness | 4.7625mm |
| Maximum Depth of Cut | 18mm |
| Maximum Cutting Depth | 18mm |
