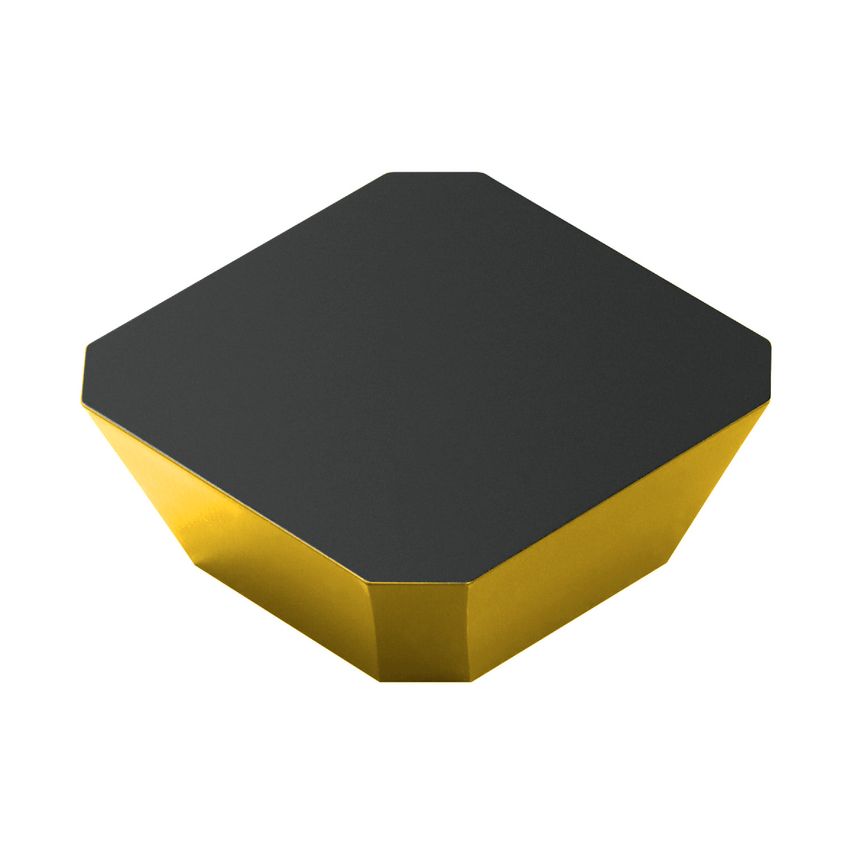

ModulMill - Insert for milling
| Unit Measured | Metric |
| Hand Preference | Neutral |
| Insert Shape | Square |
| Finish/Coating | TiCN+Al2O3+TiN |
| Maximum Cutting Depth | 8.7mm |
| Insert Mounting Style | Clamp |
| Cutting Edge Count | 4 |
| Insert Rake Angle | 0\u00b0 |
| Insert Style | Clamp |
| Through Hole Function Property | Yes |
| Inscribed Circle | 15.875mm |
| CoroPak | 9.1 |
| Insert Thickness | 4.7625mm |
| Wiper Edge Length | 2mm |
| Corner Radius | 1.5mm |
| Cutting Edge Length | 2mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | CVD |
| Insert Size/Shape | SE1504AZ |
| Inscribed Circle Diameter | 15.88mm |
| Coating Type | TiCN+Al2O3+TiN |
| Maximum Depth of Cut | 8.7mm |
| Grade | 4240 |
| Weight | 13.1g |
| MFR Part No. | 5749673 |
