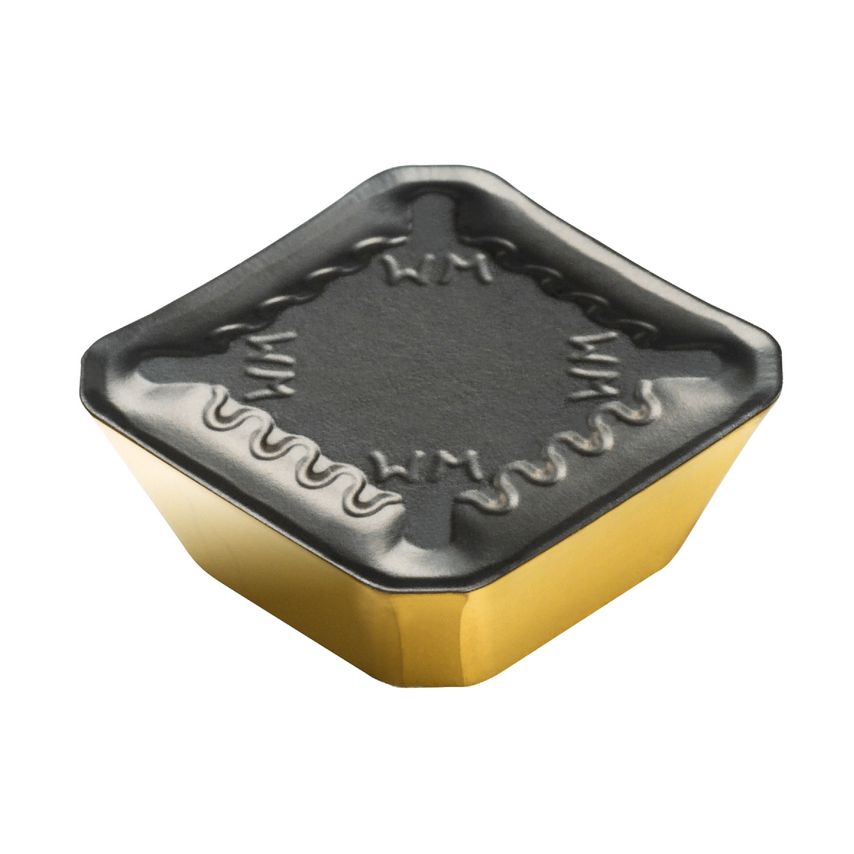

ModulMill - Insert for milling
| Inscribed Circle | 12.7mm |
| Insert Shape | Square |
| MFR Part No. | 5749689 |
| Cutting Edge Count | 4 |
| Insert Mounting Style | Clamp |
| Insert Rake Angle | 15\u00b0 |
| CoroPak | 9.1 |
| Grade | 4230 |
| Insert Style | Clamp |
| Finish/Coating | TiCN+Al2O3+TiN |
| Through Hole Function Property | Yes |
| Hand Preference | Neutral |
| Unit Measured | Metric |
| Coating Type | TiCN+Al2O3+TiN |
| Wiper Edge Length | 1.6mm |
| Corner Radius | 1.5mm |
| Maximum Cutting Depth | 6.4mm |
| Insert Size/Shape | SE1203AZ |
| Coating Process Type | CVD |
| Maximum Depth of Cut | 6.4mm |
| Insert Thickness | 3.175mm |
| Inscribed Circle Diameter | 12.7mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
