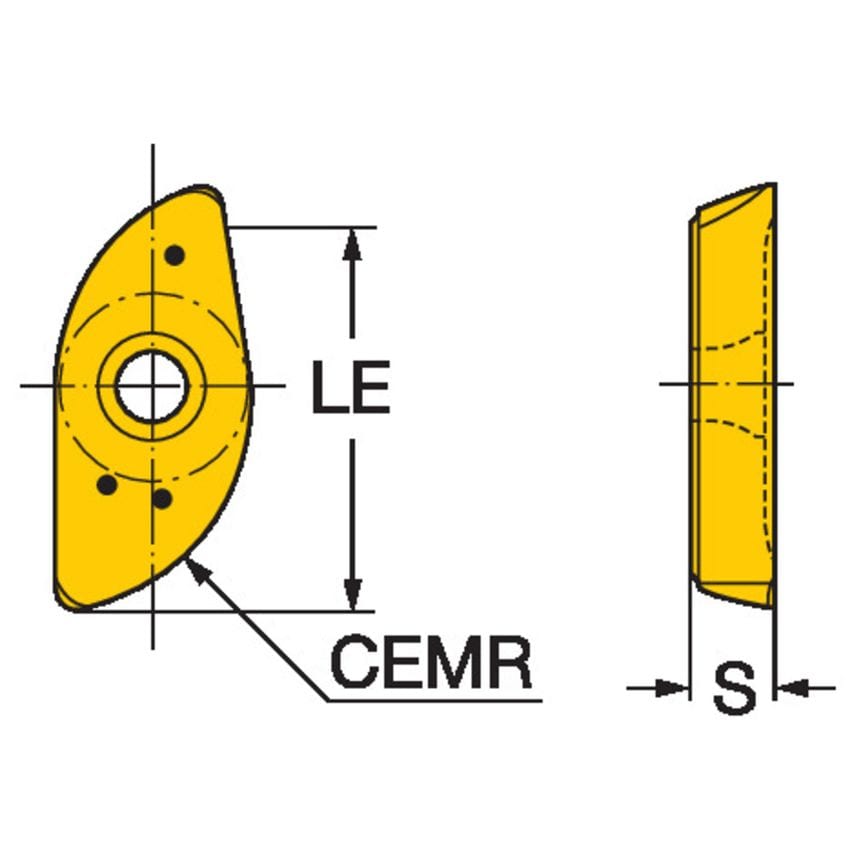

A metal remover for rough and semi-finish profilingCoroMill 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.Features.& Benefits- Ball nose cutter for roughing to semi-finishing- 2 cutting edges- Internal coolant
| Insert Mounting Style | Screw/Clamp |
| Grade | 1025 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Edge Major Radius | 25.4mm |
| Insert Rake Angle | 0\u00b0 |
| CoroPak | 99.1 |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Insert Size/Shape | CoroMill 216in -5107 |
| Hand Preference | Right |
| Insert Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Weight | 78.5g |
| Fixing Hole Diameter | 9mm |
| Insert Thickness | 7.9375mm |
| MFR Part No. | 5739519 |
| Cutting Edge Count | 2 |
| Coating Type | TiCN+TiN |
| Finish/Coating | TiCN/TiN |
