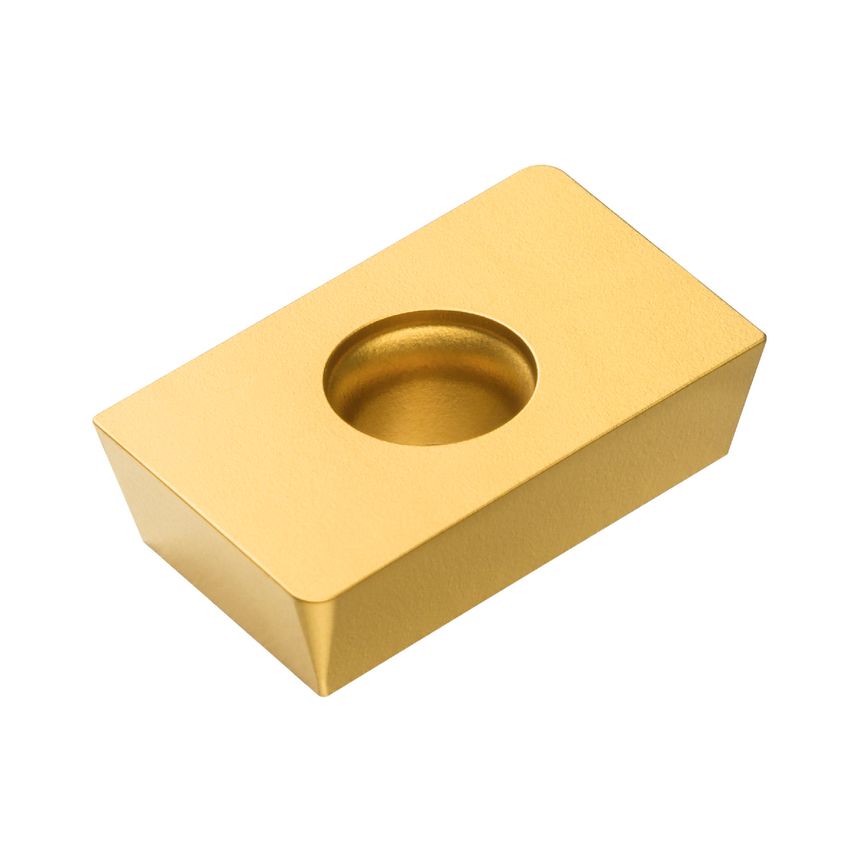

U-Max insert for milling
| Fixing Hole Diameter | 2.9mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Maximum Cutting Depth | 8mm |
| Insert Width | 6.3mm |
| Coating Process Type | CVD |
| Coating Type | TiCN+TiN |
| Insert Thickness | 2.38125mm |
| Insert Size/Shape | Mill 216.2 -080204-1-C |
| Grade | 235 |
| Insert Mounting Style | Screw/Clamp |
| CoroPak | 90.1 |
| Cutting Edge Count | 2 |
| Maximum Depth of Cut | 8mm |
| Insert Style | Screw/Clamp |
| MFR Part No. | 5742837 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 1.5g |
| Hand Preference | Right |
| Finish/Coating | TiCN/TiN |
| Corner Radius | 0.4mm |
