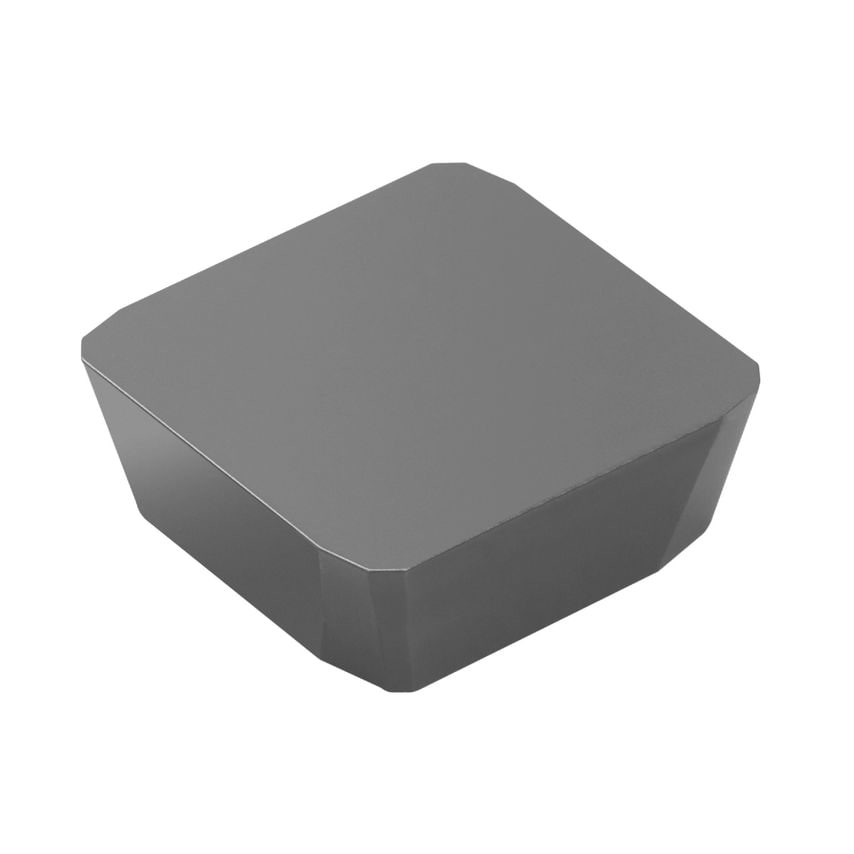

ModulMill - Insert for milling
| Grade | SMA |
| Insert Style | Clamp |
| Maximum Cutting Depth | 9mm |
| Unit Measured | Metric |
| Insert Size/Shape | SP1203ED |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Coating Type | Uncoated |
| Cutting Edge Length | 1.6mm |
| Coating Process Type | Uncoated |
| Inscribed Circle | 12.7mm |
| Insert Mounting Style | Clamp |
| Insert Thickness | 3.175mm |
| ISO Cutting Tool Material | Uncoated WC grain size >=1 |
| Insert Rake Angle | 0\u00b0 |
| Cutting Edge Count | 4 |
| CoroPak | 84.1 |
| Maximum Depth of Cut | 9mm |
| Wiper Edge Length | 1.6mm |
| Insert Shape | Square |
| MFR Part No. | 5751232 |
| Inscribed Circle Diameter | 12.7mm |
| Corner Radius | 0.85mm |
| Finish/Coating | Uncoated |
