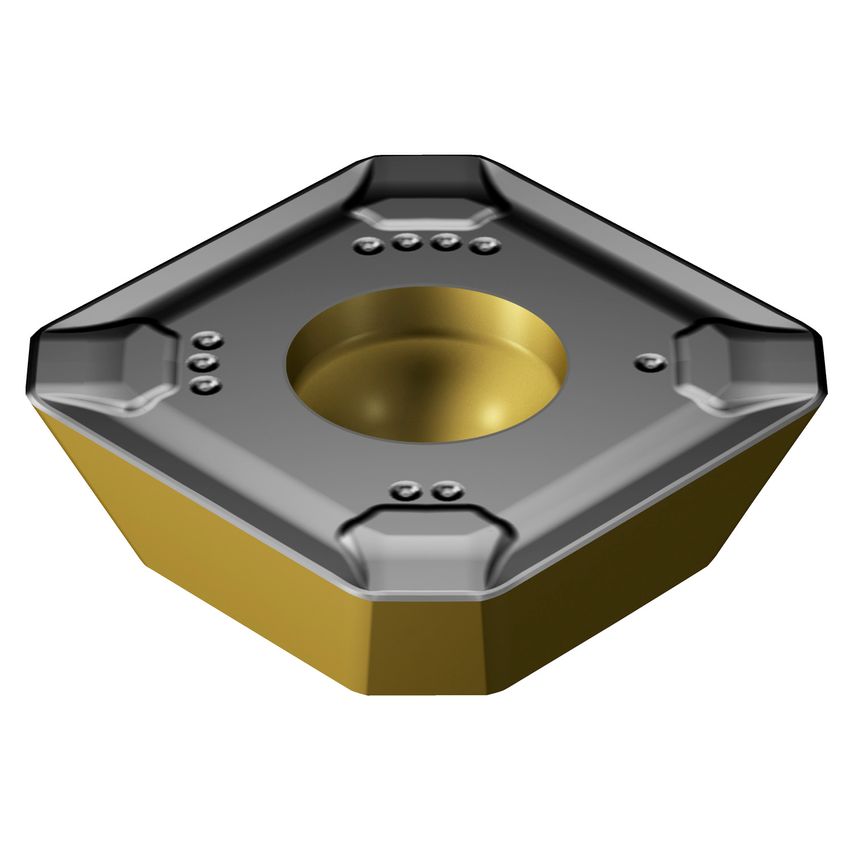

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Maximum Depth of Cut | 6.5mm |
| MFR Part No. | 5743998 |
| Cutting Edge Count | 4 |
| Inscribed Circle | 13.4mm |
| Wiper Edge Length | 2mm |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Inscribed Circle Diameter | 13.4mm |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| Corner Radius | 1.5mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Thickness | 3.96875mm |
| Fixing Hole Diameter | 4.1mm |
| Grade | 3220 |
| CoroPak | 6.2 |
| Coating Type | TiCN+Al2O3+TiN |
| Maximum Cutting Depth | 6.5mm |
| Insert Shape | Square |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 6.9g |
| Coating Process Type | CVD |
| Unit Measured | Metric |
| Insert Style | Screw/Clamp |
| Insert Rake Angle | 6\u00b0 |
