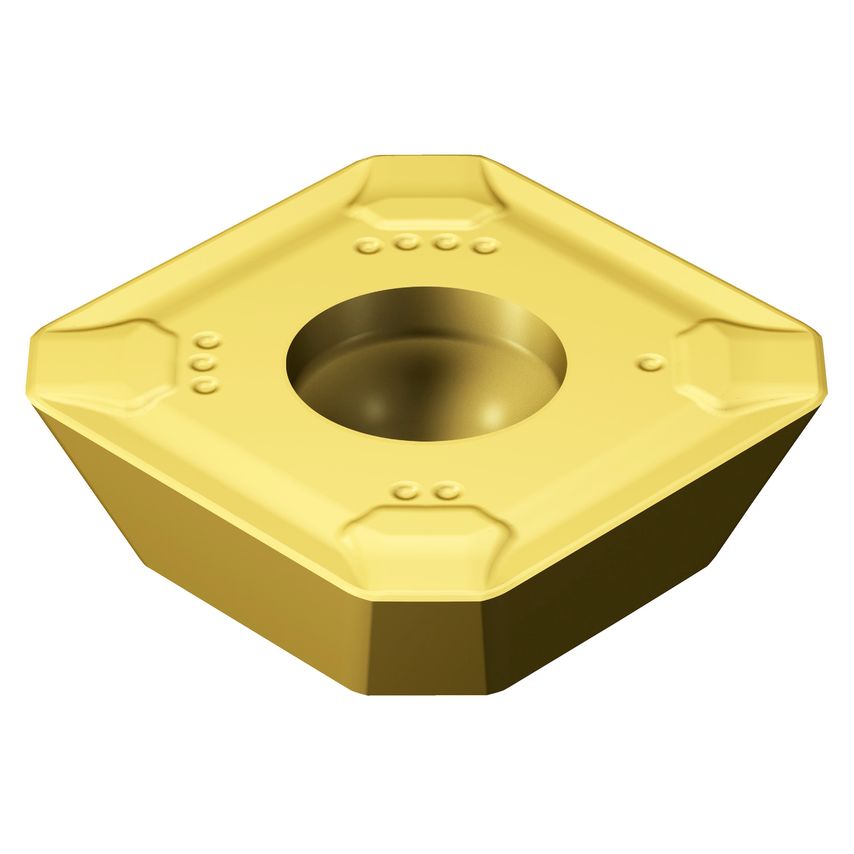

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Finish/Coating | TiAlN/TiN |
| Weight | 6.3g |

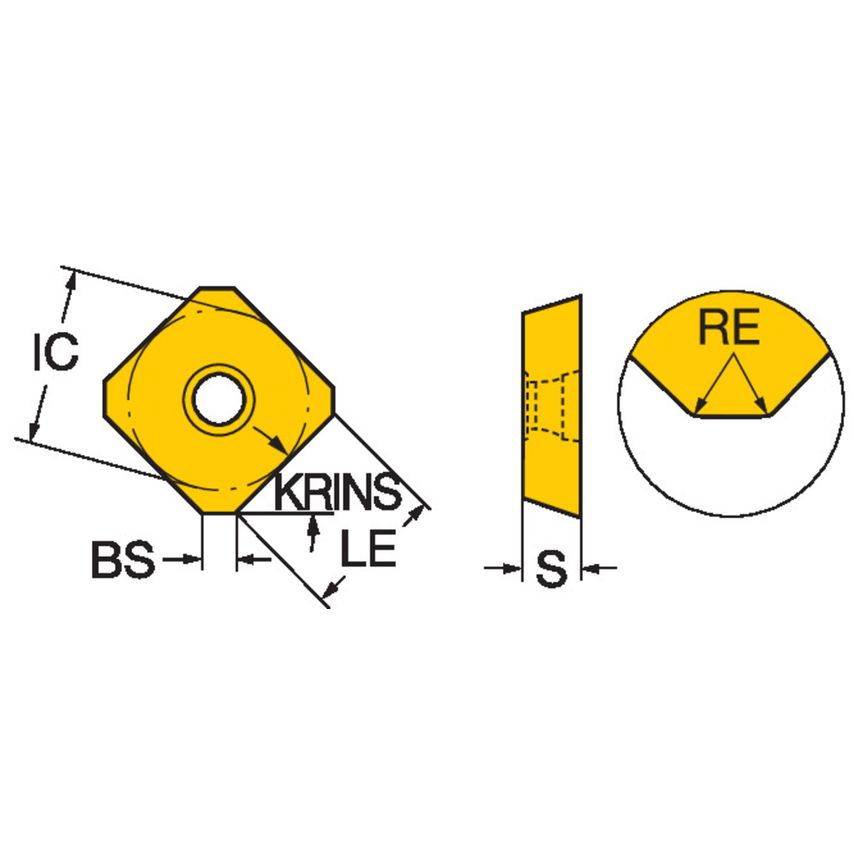

| Inscribed Circle Diameter | 13.4mm |
| Wiper Edge Radius | 200mm |
| Coating Process Type | PVD |
| Insert Rake Angle | 15\u00b0 |
| Wiper Edge Length | 2.1mm |
| Corner Radius | 1.5mm |
| Fixing Hole Diameter | 4.1mm |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN+TiN |
| CoroPak | 99.2 |
| Hand Preference | Right |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Grade | 2030 |
| Cutting Edge Count | 4 |
| Unit Measured | Metric |
| Insert Shape | Square |
| Maximum Depth of Cut | 6.5mm |
| MFR Part No. | 5744014 |
| Insert Thickness | 3.96875mm |
| Insert Style | Screw/Clamp |
| Maximum Cutting Depth | 6.5mm |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle | 13.4mm |
