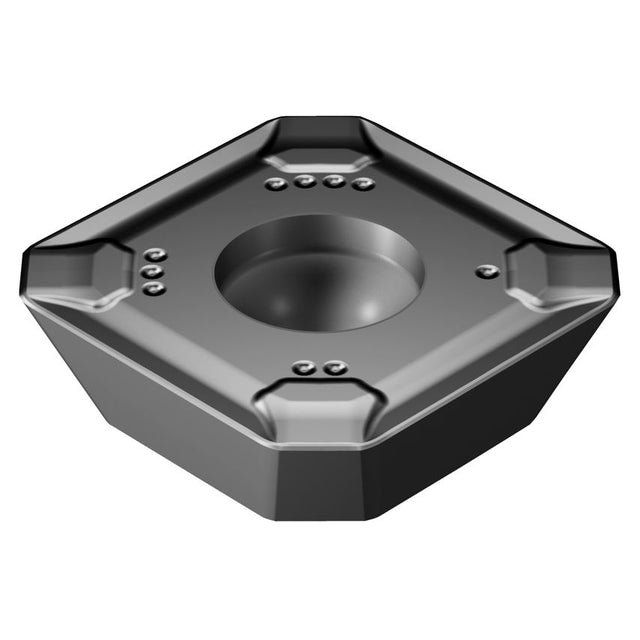

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

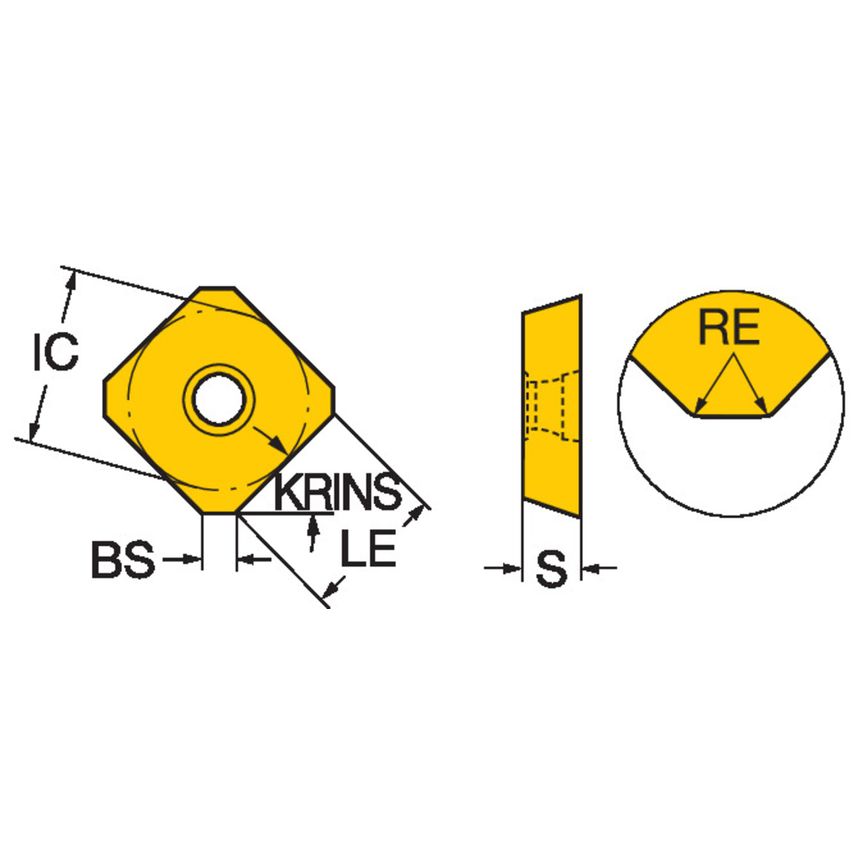

| Insert Size/Shape | CoroMill 245 -12T3 |
| Insert Thickness | 3.96875mm |
| Inscribed Circle | 13.4mm |
| Fixing Hole Diameter | 4.1mm |
| Insert Rake Angle | 6\u00b0 |
| Insert Style | Screw/Clamp |
| Maximum Cutting Depth | 6.5mm |
| Weight | 6.6g |
| CoroPak | 97.3 |
| Insert Shape | Square |
| Grade | 3040 |
| Cutting Edge Count | 4 |
| Finish/Coating | TiCN+Al2O3 |
| Coating Process Type | CVD |
| Unit Measured | Metric |
| Coating Type | TiCN+Al2O3 |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle Diameter | 13.4mm |
| Through Hole Function Property | Yes |
| Wiper Edge Length | 2mm |
| Hand Preference | Right |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 6.5mm |
| MFR Part No. | 5743992 |
| Corner Radius | 1.5mm |
