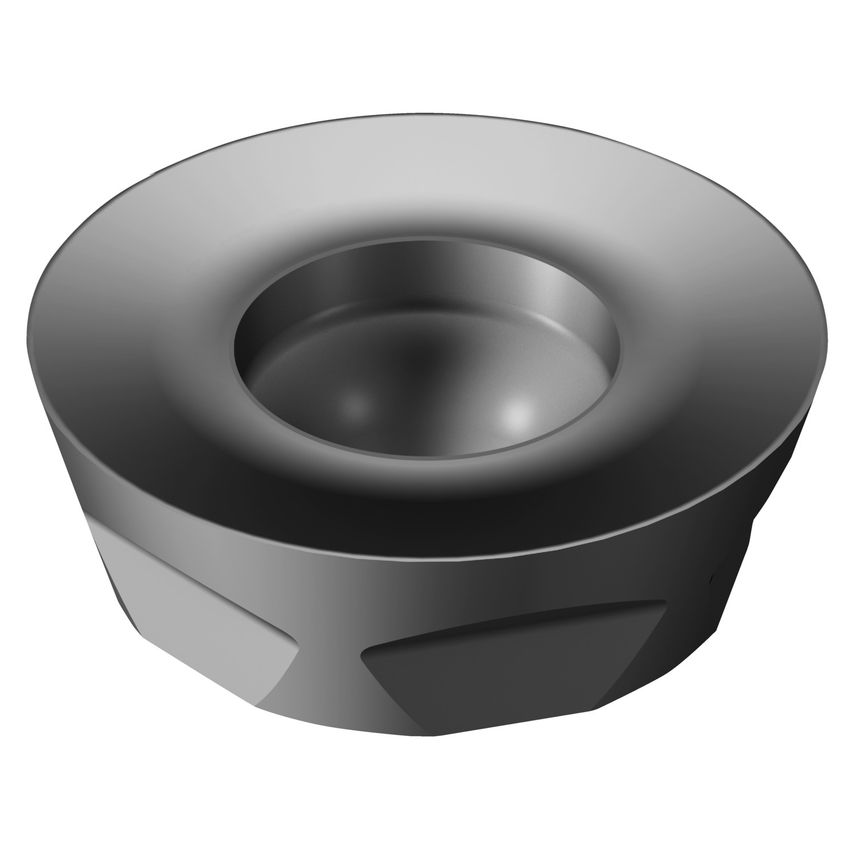

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Insert Shape | Round |
| Corner Radius | 4.7625mm |
| Coating Process Type | PVD |
| Cutting Edge Count | 6 |
| Weight | 1.8g |
| Grade | 1010 |
| Inscribed Circle | 9.525mm |
| MFR Part No. | 5744403 |
| Inscribed Circle Diameter | 9.53mm |
| Maximum Depth of Cut | 2.38mm |
| Insert Size/Shape | CoroMill 300 -0932 |
| Hand Preference | Neutral |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| Coating Type | TiAlN |
| Fixing Hole Diameter | 4.4mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Style | Screw/Clamp |
| Unit Measured | Imperial |
| Finish/Coating | TiAlN |
| Insert Thickness | 3.175mm |
| Maximum Cutting Depth | 2.38mm |
| CoroPak | 8.2 |
