Product Range: CoroMill 290Tool Type: Shoulder millingCoroMill 290 is a general-purpose square shoulder milling cutter that provides an economical solution with four cutting edges per insert. It is also suitable for face milling when workpiece fixturing limits the approach for machining. Generally, it provides an economical solution with four cutting edges per insert but does not allow ramping.Benefits- Economical solution- Long, even and predictable tool life- Excellent surface finishFeatures- Cylindrical shank or Arbor mounting- Low axial forces- Shim protected insert seats- Insert geometries and grades for ISO P, ISO K, and ISO H- Four cutting edgesApplicationShoulder milling, Slot milling, Circular interpolation

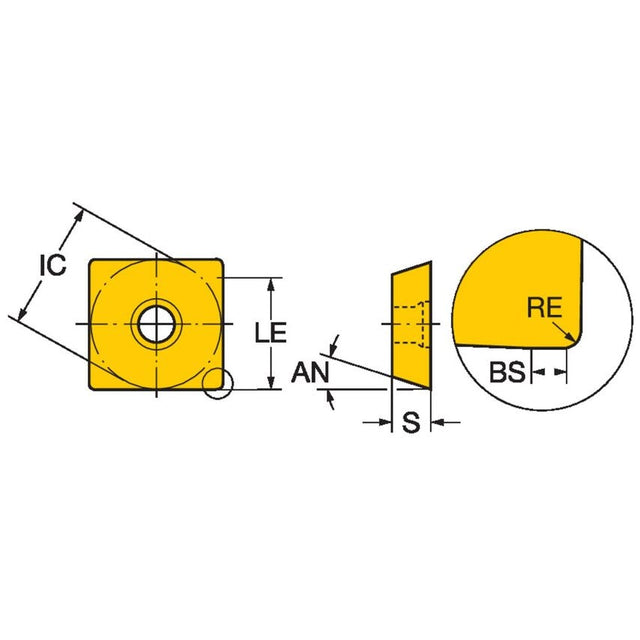

| Unit Measured | Metric |
| Finish/Coating | TiCN+Al2O3+TiN |
| Maximum Cutting Depth | 10.7mm |
| Grade | 4230 |
| Corner Radius | 2mm |
| Insert Shape | Square |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle Diameter | 13.29mm |
| Hand Preference | Right |
| Fixing Hole Diameter | 4.1mm |
| Cutting Edge Count | 4 |
| Coating Process Type | CVD |
| Through Hole Function Property | Yes |
| MFR Part No. | 5744144 |
| Insert Thickness | 3.96875mm |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Size/Shape | CoroMill 290 -12T3 |
| Insert Style | Screw/Clamp |
| Insert Mounting Style | Screw/Clamp |
| Weight | 7.3g |
| CoroPak | 7.1 |
| Maximum Depth of Cut | 10.7mm |
| Inscribed Circle | 13.29mm |
