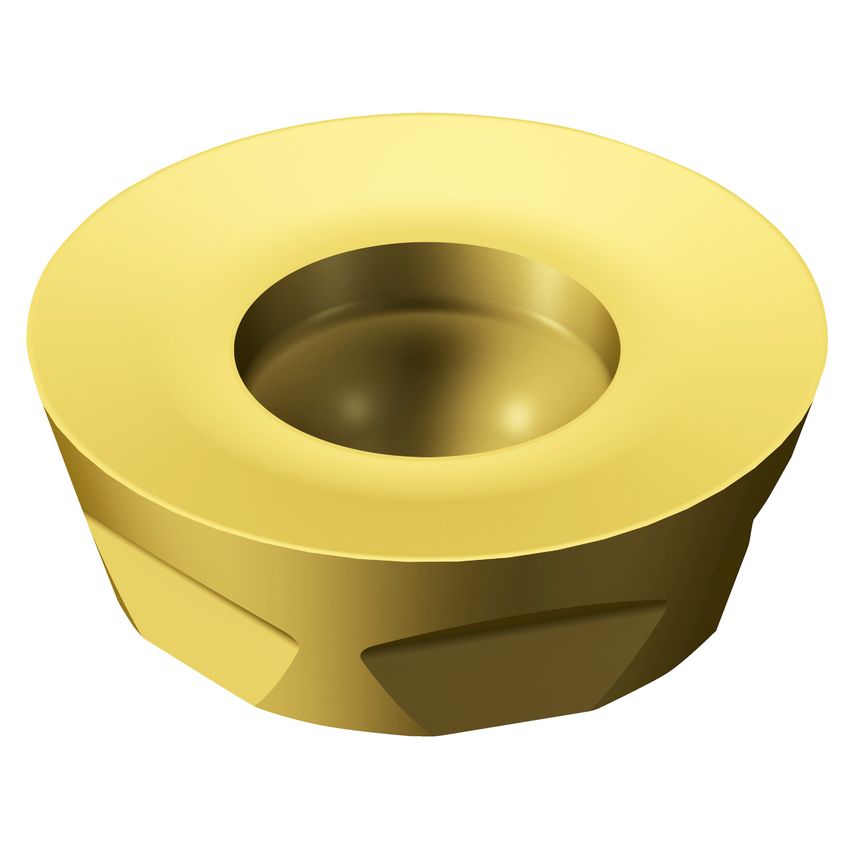

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Corner Radius | 6.35mm |
| MFR Part No. | 5744482 |
| Coating Type | TiAlN+TiN |
| CoroPak | 5.1 |
| Fixing Hole Diameter | 4.1mm |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle | 12.7mm |
| Grade | 2030 |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 3.18mm |
| Hand Preference | Neutral |
| Unit Measured | Imperial |
| Insert Shape | Round |
| Weight | 5.3g |
| Cutting Edge Count | 6 |
| Insert Size/Shape | CoroMill 300 -1340 |
| Insert Style | Screw/Clamp |
| Finish/Coating | TiAlN/TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle Diameter | 12.7mm |
| Maximum Cutting Depth | 3.18mm |
| Insert Thickness | 3.96875mm |
