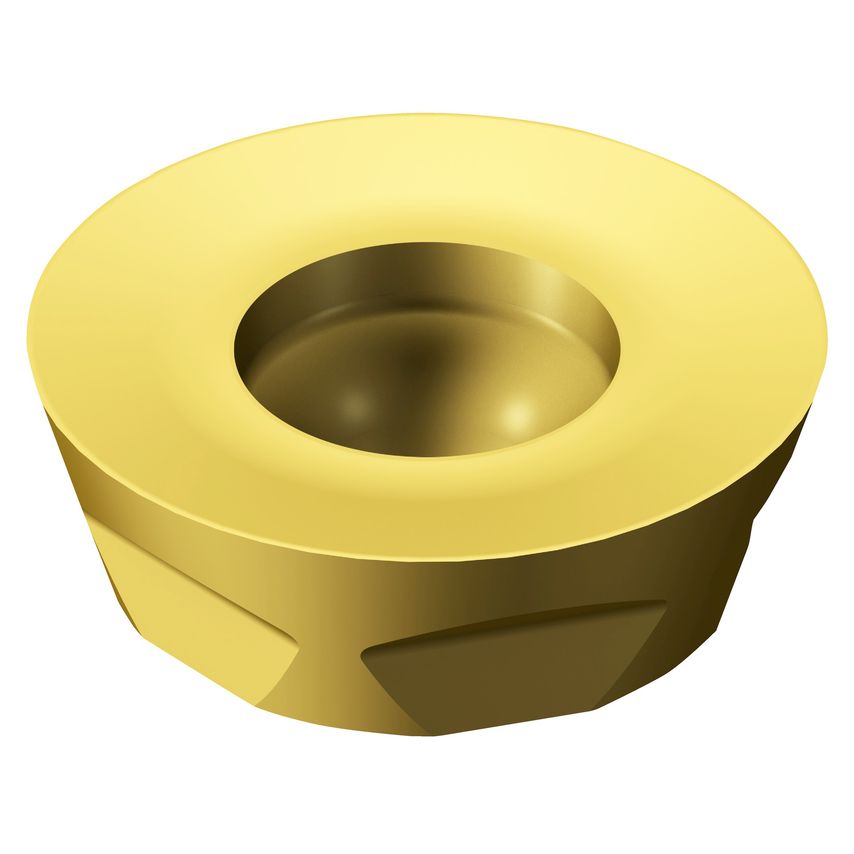

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Grade | 2040 |
| Inscribed Circle | 16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Style | Screw/Clamp |
| Insert Thickness | 4.7625mm |
| Corner Radius | 8mm |
| Inscribed Circle Diameter | 16mm |
| Finish/Coating | TiCrN+Al2O3+TiN |
| Hand Preference | Neutral |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 4mm |
| Insert Shape | Round |
| Unit Measured | Metric |
| Coating Type | TiCrN+Al2O3+TiN |
| Fixing Hole Diameter | 5.7mm |
| MFR Part No. | 5744554 |
| CoroPak | 5.1 |
| Coating Process Type | CVD |
| Insert Size/Shape | CoroMill 300 -1648 |
| Cutting Edge Count | 6 |
| Maximum Cutting Depth | 4mm |
