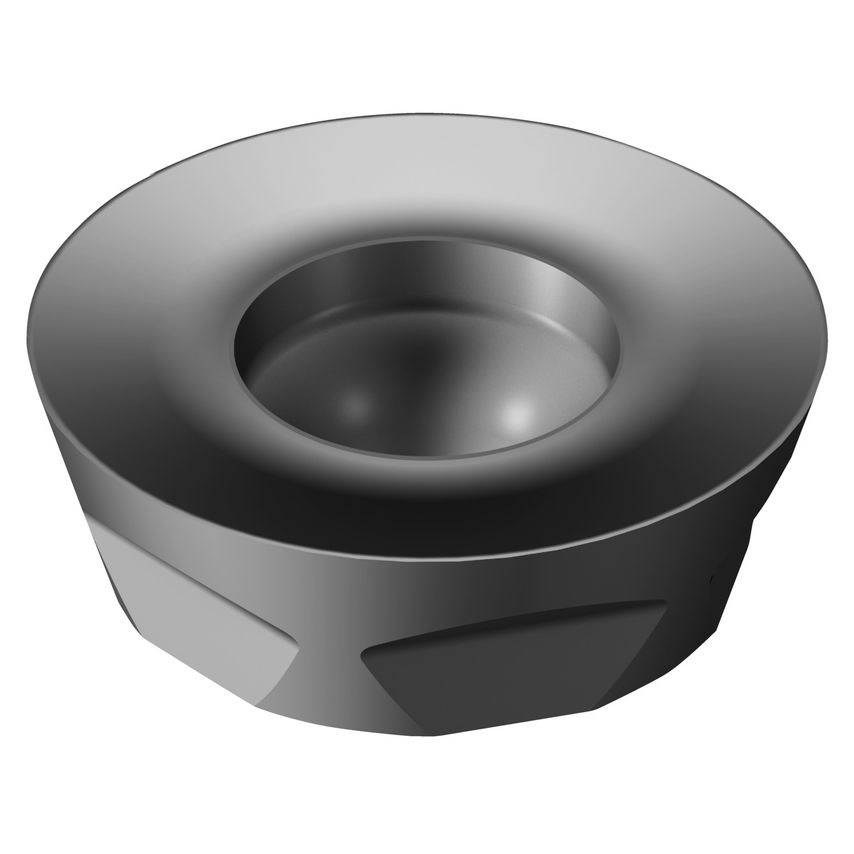

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Insert Mounting Style | Screw/Clamp |
| Insert Thickness | 7.94mm |
| Cutting Edge Count | 8 |
| Corner Radius | 12.7mm |
| MFR Part No. | 5744632 |
| Unit Measured | Imperial |
| Finish/Coating | TiAlN |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 3.72mm |
| Coating Type | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 3.72mm |
| Insert Shape | Round |
| CoroPak | 9.2 |
| Inscribed Circle Diameter | 25.4mm |
| Inscribed Circle | 25.4mm |
| Grade | 1010 |
| Hand Preference | Neutral |
| Insert Size/Shape | CoroMill 300 -2570 |
| Insert Style | Screw/Clamp |
| Fixing Hole Diameter | 7.6mm |
