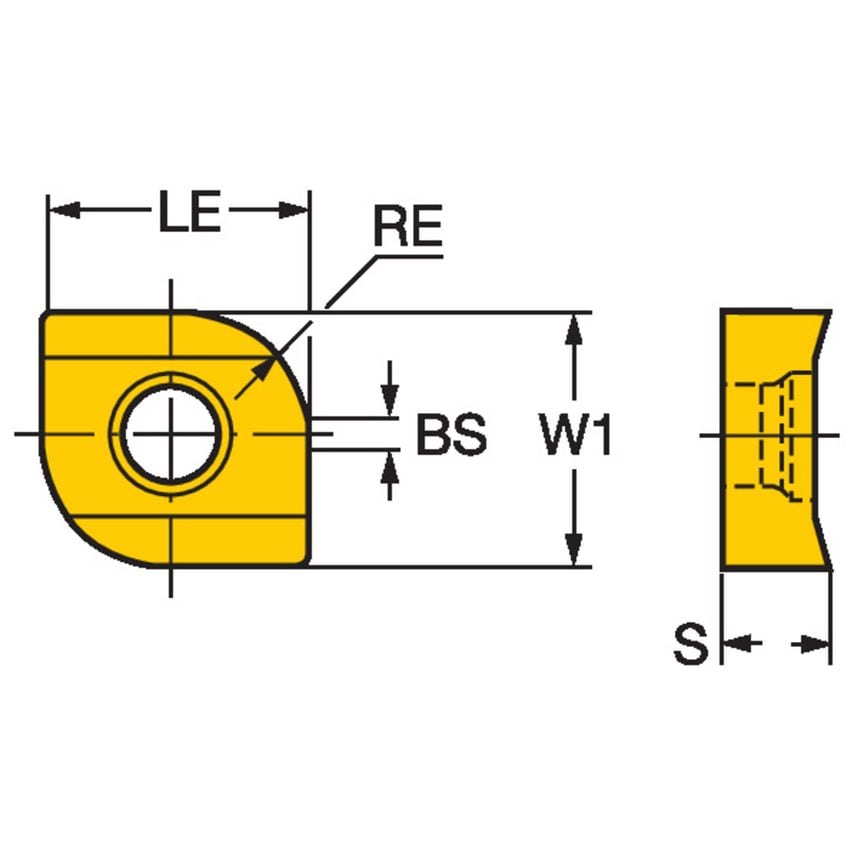

Product Range: CoroMill 331Multi-purpose side and face milling cutter.Features & Benefits- For radially wide shoulders, back facing and gang milling- 2 cutting edges- Large radius assortment- Cartridges for security- Internal coolant
| Coating Type | TiCN+TiN |
| Hand Preference | Right |
| Insert Style | Screw/Clamp |
| Fixing Hole Diameter | 4.6mm |
| Maximum Cutting Depth | 10.7mm |
| CoroPak | 97.1 |
| Insert Width | 11.5mm |
| Maximum Depth of Cut | 10.7mm |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Grade | 1025 |
| Insert Mounting Style | Screw/Clamp |
| Cutting Edge Count | 2 |
| Corner Radius | 6.35mm |
| MFR Part No. | 5744606 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Finish/Coating | TiCN/TiN |
| Insert Size/Shape | CoroMill 331 -11 |
| Wiper Edge Length | 1.6mm |
| Insert Thickness | 4.95mm |
| Unit Measured | Metric |
| Insert Shape | Rectangle |
