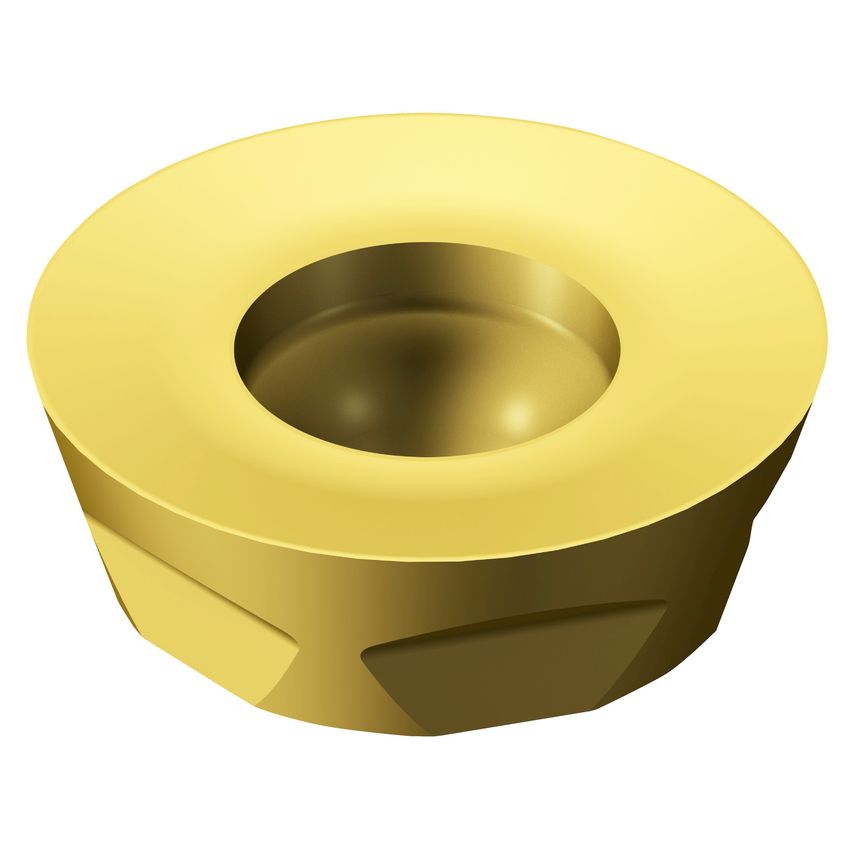

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Maximum Depth of Cut | 3.18mm |
| Cutting Edge Count | 6 |
| Insert Size/Shape | CoroMill 300 -1340 |
| MFR Part No. | 5744669 |
| CoroPak | 5.1 |
| Unit Measured | Imperial |
| Inscribed Circle Diameter | 12.7mm |
| Inscribed Circle | 12.7mm |
| Fixing Hole Diameter | 4.1mm |
| Insert Shape | Round |
| Maximum Cutting Depth | 3.18mm |
| Hand Preference | Neutral |
| Coating Type | TiCrN+Al2O3+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | CVD |
| Corner Radius | 6.35mm |
| Insert Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Grade | 2040 |
| Insert Mounting Style | Screw/Clamp |
| Insert Thickness | 3.96875mm |
| Finish/Coating | TiCrN+Al2O3+TiN |
