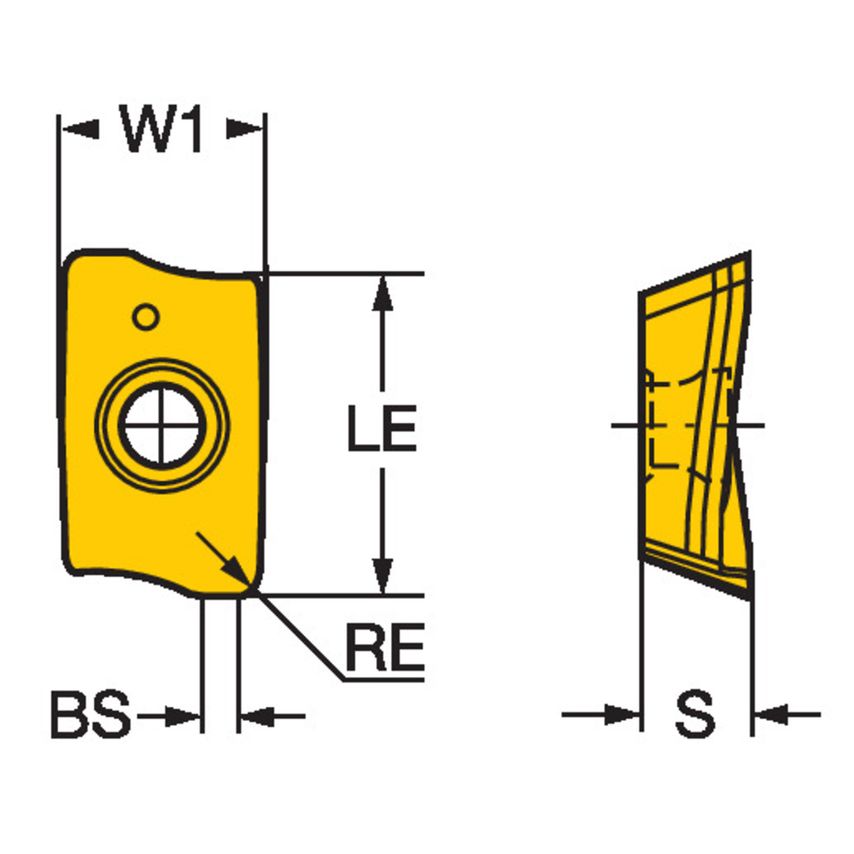

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| CoroPak | 99.2 |
| MFR Part No. | 5745424 |
| Corner Radius | 0.4mm |
| Wiper Edge Length | 0.9mm |
| Insert Style | Screw/Clamp |
| Insert Width | 6.8mm |
| Unit Measured | Metric |
| Maximum Cutting Depth | 10mm |
| Finish/Coating | TiCN/TiN |
| Fixing Hole Diameter | 2.8mm |
| Weight | 2.3g |
| Insert Mounting Style | Screw/Clamp |
| Cutting Edge Count | 2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Shape | Rectangle |
| Coating Type | TiCN+TiN |
| Grade | 1025 |
| Insert Thickness | 3.59mm |
| Maximum Depth of Cut | 10mm |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Insert Size/Shape | CoroMill 390 -11T3 |
