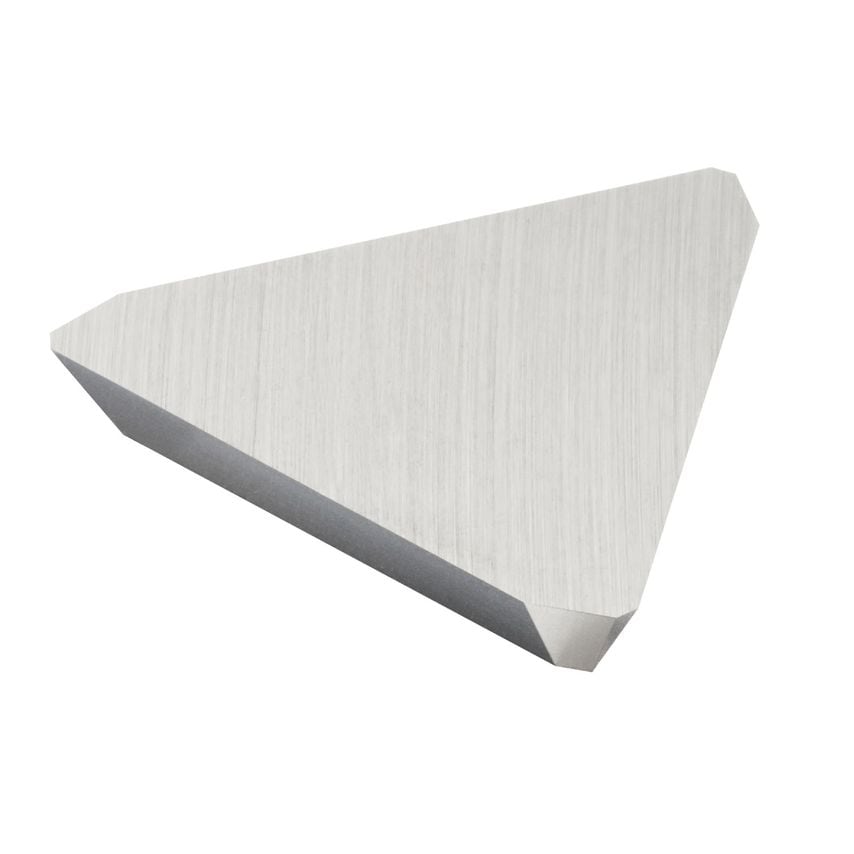

T-Max AL - Insert for milling
| CoroPak | 79.1 |
| Unit Measured | Metric |
| Cutting Edge Count | 3 |
| Maximum Cutting Depth | 18mm |
| Maximum Depth of Cut | 18mm |
| MFR Part No. | 5752928 |
| Inscribed Circle Diameter | 12.7mm |
| Finish/Coating | Uncoated |
| Coating Process Type | Uncoated |
| Coating Type | Uncoated |
| Hand Preference | Right |
| Inscribed Circle | 12.7mm |
| Insert Mounting Style | Clamp |
| Insert Style | Clamp |
| Wiper Edge Length | 2.5mm |
| Insert Size/Shape | TF2203PF |
| Insert Thickness | 3.175mm |
| Insert Shape | Triangle |
| ISO Cutting Tool Material | Uncoated WC |
| Grade | H10 |
| Through Hole Function Property | Yes |
| Insert Rake Angle | 0\u00b0 |
