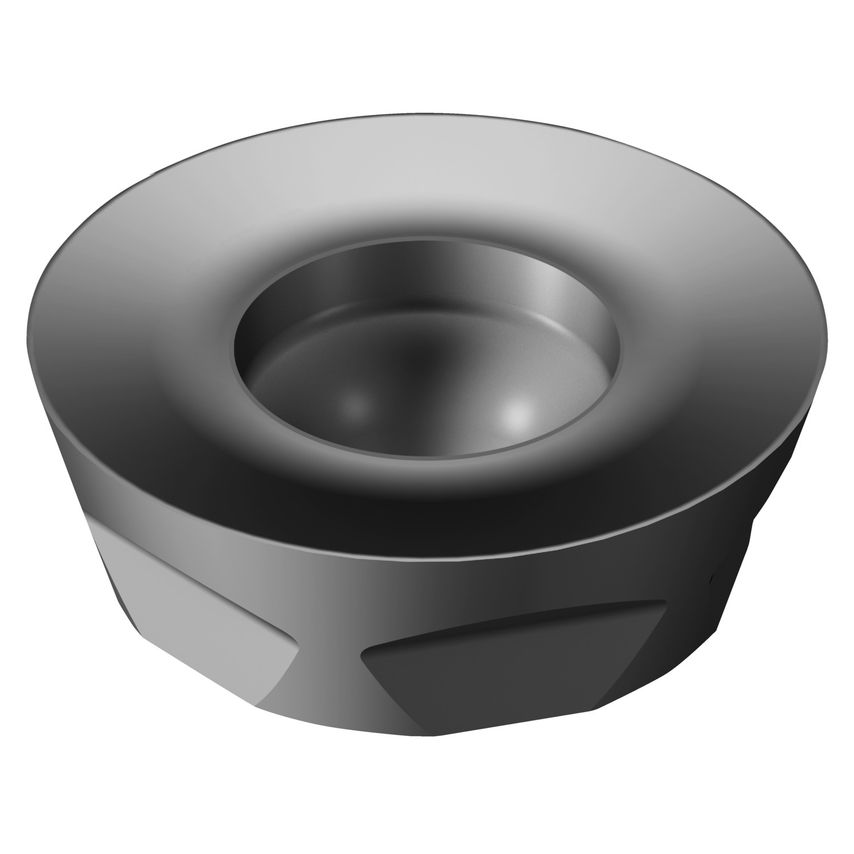

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Coating Type | TiAlN |
| Insert Style | Screw/Clamp |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 3.18mm |
| Maximum Cutting Depth | 3.18mm |
| Insert Size/Shape | CoroMill 300 -1340 |
| CoroPak | 10.1 |
| Grade | S30T |
| Through Hole Function Property | Yes |
| MFR Part No. | 5853445 |
| Hand Preference | Neutral |
| Inscribed Circle Diameter | 12.7mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Imperial |
| Cutting Edge Count | 6 |
| Insert Mounting Style | Screw/Clamp |
| Finish/Coating | TiAlN |
| Insert Shape | Round |
| Inscribed Circle | 12.7mm |
| Corner Radius | 6.35mm |
| Insert Thickness | 3.96875mm |
| Fixing Hole Diameter | 4.1mm |
