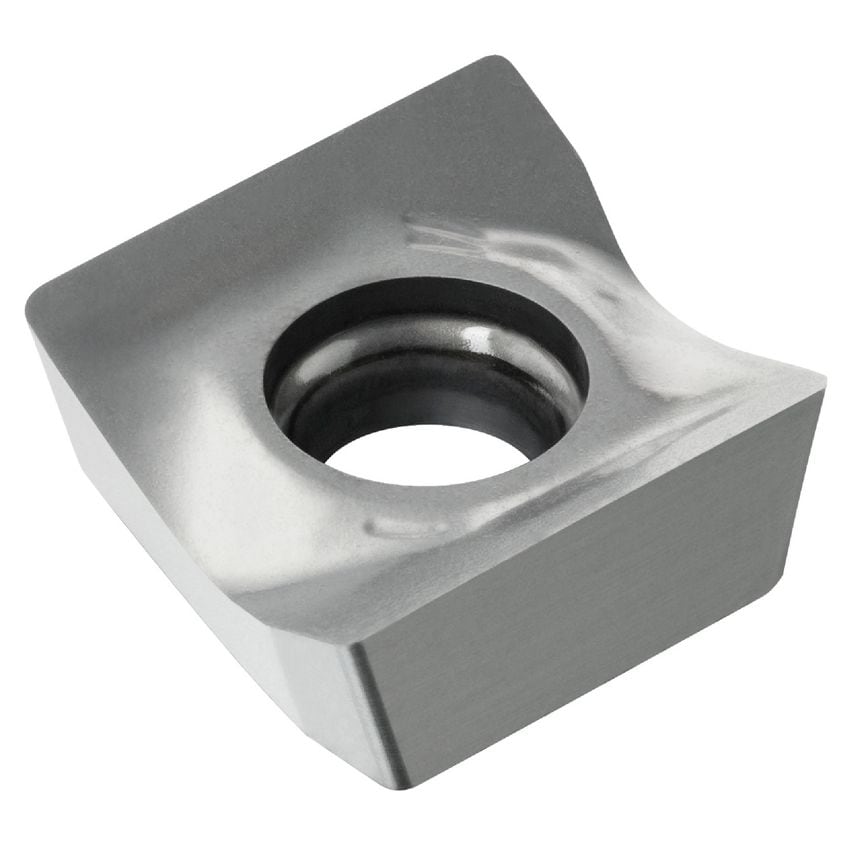

Product Range: CoroMill CenturyCoroMill Century is a face mill tool system with aluminium or steel body for high speed machining. The tool is designed with serrated insert interface for safe performance and reduced run-out. The axial position of the inserts can easily be micro set with high accuracy.Features & Benefits- First choice for super-finishing in aluminium- 2 cutting edges- 90-degree lead angle- Axial adjustable- Internal coolant- High speed machining security by designApplication- Face and square shoulder milling for ISO N- CBN grades for high-speed machining in ISO K
| Maximum Depth of Cut | 10mm |
| Cutting Edge Count | 2 |
| Corner Radius | 0.4mm |
| Hand Preference | Right |
| Weight | 6.3g |
| Insert Rake Angle | 25\u00b0 |
| Insert Width | 11.5mm |
| Coating Process Type | Uncoated |
| Grade | H10 |
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| Insert Style | Screw/Clamp |
| CoroPak | 2.2 |
| Fixing Hole Diameter | 4.6mm |
| ISO Cutting Tool Material | Uncoated WC |
| Wiper Edge Length | 2mm |
| Maximum Cutting Depth | 10mm |
| Wiper Edge Radius | 200mm |
| Coating Type | Uncoated |
| Insert Thickness | 5mm |
| Insert Mounting Style | Screw/Clamp |
| MFR Part No. | 5747652 |
| Through Hole Function Property | Yes |
| Insert Size/Shape | CoroMill 590 -1105 |
