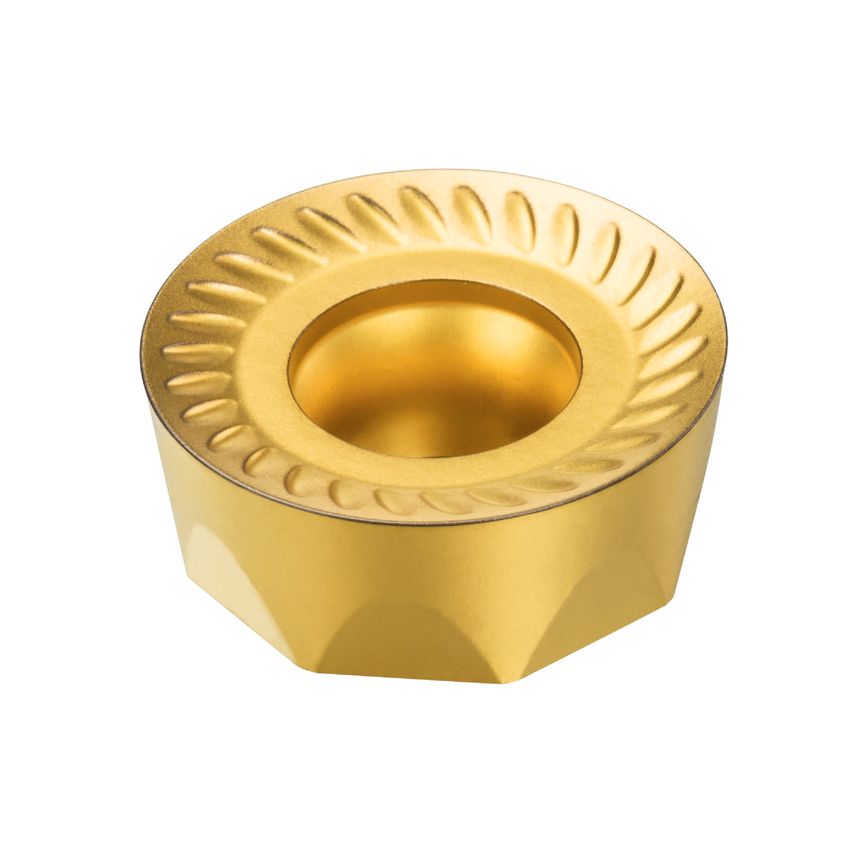

Tool type: Face millingRobust face milling and profile cutterCoroMill 200 is a very stable rougher and a versatile tool. It is a good choice for general milling as well as for die and mould-making and should be the first choice for roughing operations. Strong cutting edges make the cutter resistant to tough conditions with interruptions (holes, gaps etc.) and/or abrasive scale (skin).Features & Benfits- Round insert concept for secure first stage machining- 4 - 8 cutting edges- Shim for security- Cylindrical shank, Arbor, CIS Arbor, Whistle Notch or Weldon mounting- Process security and reliability
| CoroPak | 99.2 |
| Coating Process Type | CVD |
| Insert Style | Screw/Clamp |
| Cutting Edge Count | 8 |
| Corner Radius | 6.35mm |
| Finish/Coating | TiCrN+Al2O3+TiN |
| Insert Shape | Round |
| Maximum Depth of Cut | 1.86mm |
| Maximum Cutting Depth | 1.86mm |
| MFR Part No. | 5740567 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Hand Preference | Neutral |
| Grade | 2040 |
| Coating Type | TiCrN+Al2O3+TiN |
| Insert Mounting Style | Screw/Clamp |

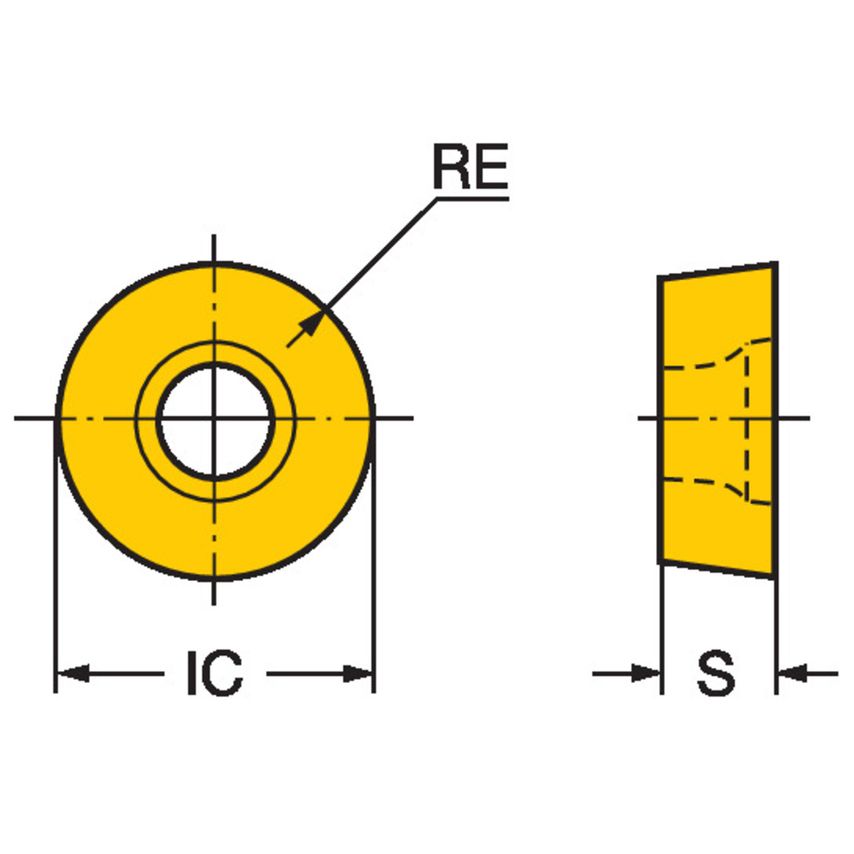

| Inscribed Circle | 12.7mm |
| Weight | 6.2g |
| Unit Measured | Imperial |
| Insert Size/Shape | RC1204 - Size RC1304 |
| Fixing Hole Diameter | 4mm |
| Through Hole Function Property | Yes |
| Inscribed Circle Diameter | 12.7mm |
| Insert Thickness | 4.7625mm |
