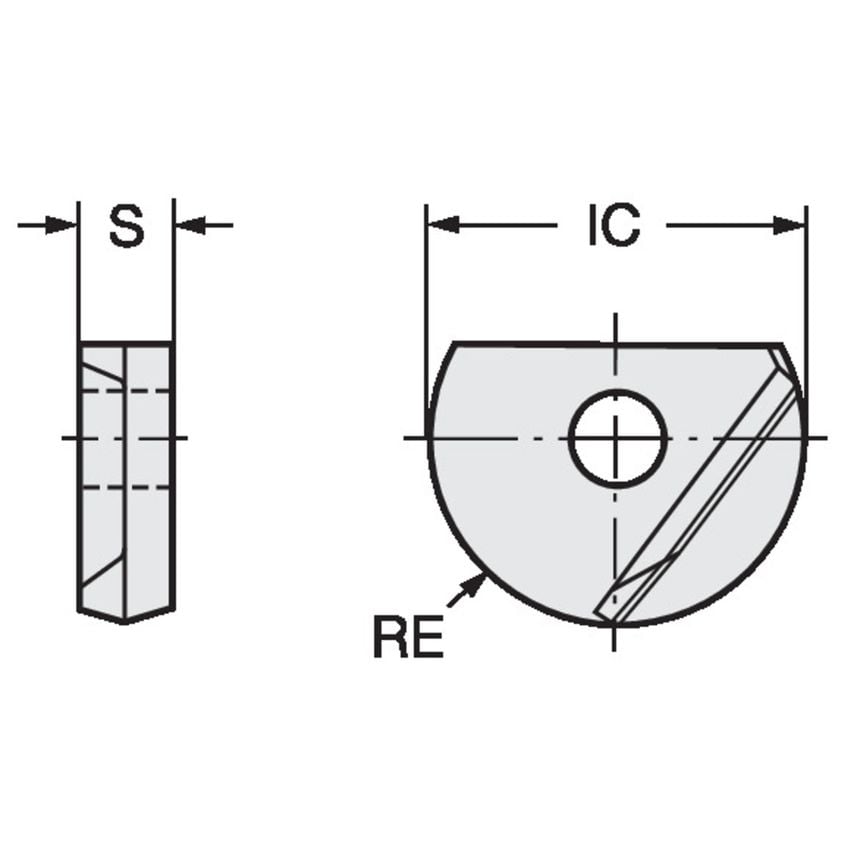

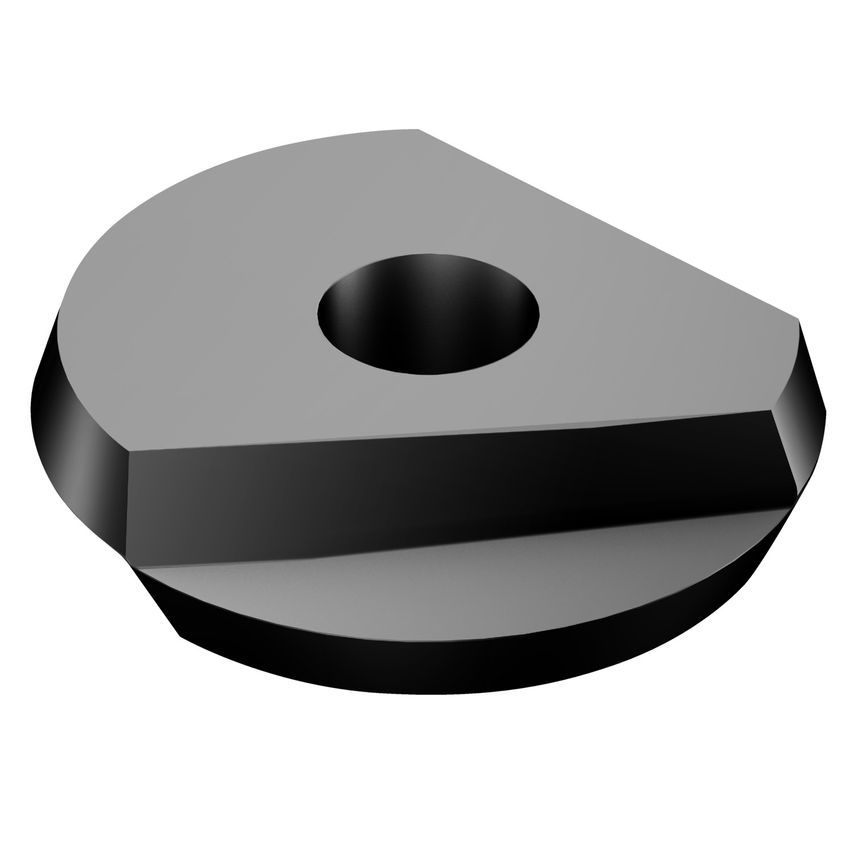

Product Range: CoroMill 216F
| ISO Cutting Tool Material | Coated WC or Cermet |
| Finish/Coating | TiAlN |
| Insert Rake Angle | 0\u00b0 |
| MFR Part No. | 5738697 |
| Insert Style | Screw/Clamp |
| Inscribed Circle Diameter | 25.4mm |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| Fixing Hole Diameter | 6mm |
| Cutting Diameter | 25.4mm |
| Corner Radius | 25.4mm |
| Insert Thickness | 6mm |
| Cutting Edge Count | 1 |
| Grade | P20A |
| Insert Size/Shape | CoroMill 216F Inch -2560 |
| Coating Type | TiAlN |
| Hand Preference | Right |
| Inscribed Circle | 25.4mm |
| Coating Process Type | PVD |
| CoroPak | 70 |
| Unit Measured | Imperial |
