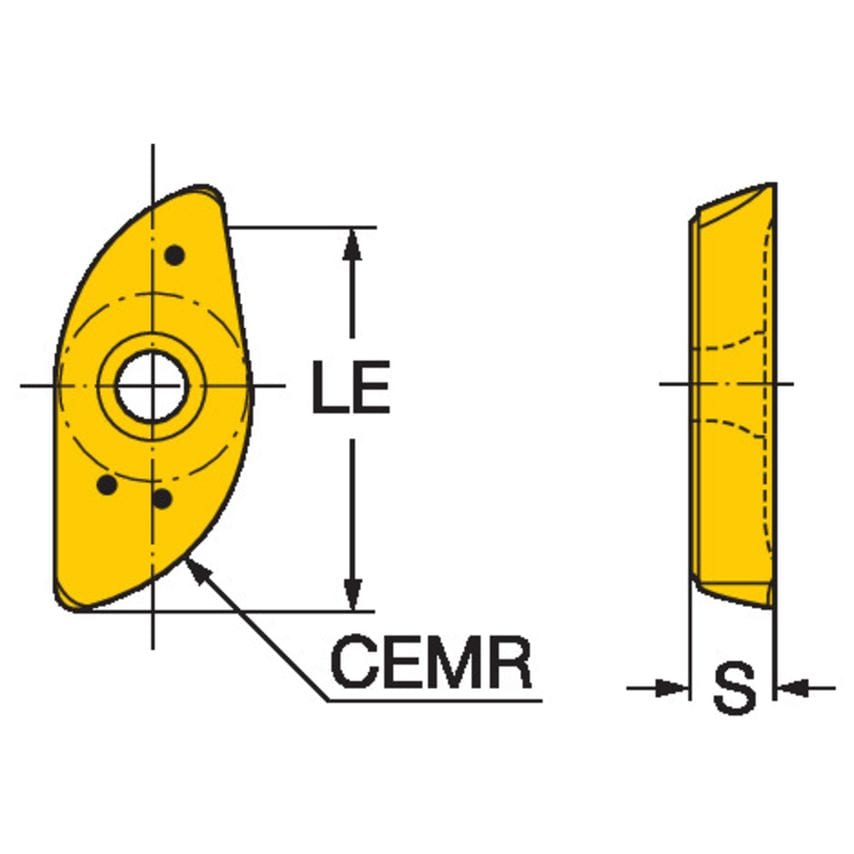

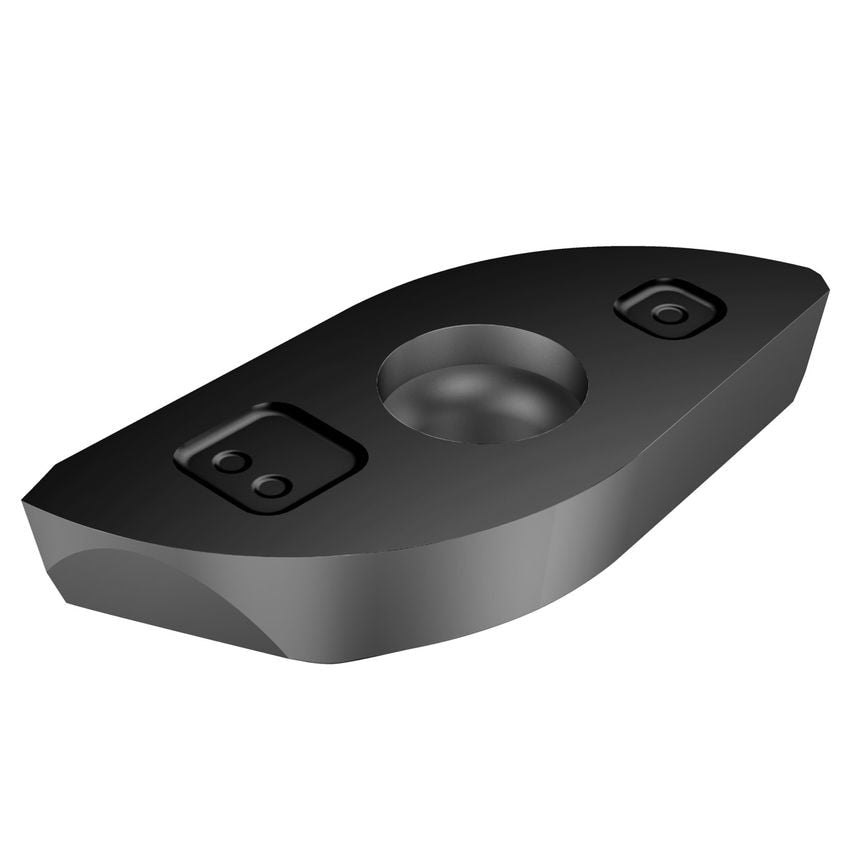

A metal remover for rough and semi-finish profilingCoroMill 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.Features.& Benefits- Ball nose cutter for roughing to semi-finishing- 2 cutting edges- Internal coolant
| Through Hole Function Property | Yes |
| MFR Part No. | 7100964 |
| Coating Process Type | PVD |
| Fixing Hole Diameter | 5.9mm |
| Grade | 1130 |
| Hand Preference | Right |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Thickness | 6.35mm |
| Insert Size/Shape | CoroMill 216in -3206 |
| Unit Measured | Imperial |
| Insert Mounting Style | Screw/Clamp |
| CoroPak | 18.1 |
| Cutting Edge Major Radius | 15.59mm |
| Coating Type | AlTiCrN |
| Insert Rake Angle | 0\u00b0 |
| Finish/Coating | AlTiCrN |
| Insert Style | Screw/Clamp |
| Cutting Edge Count | 2 |
