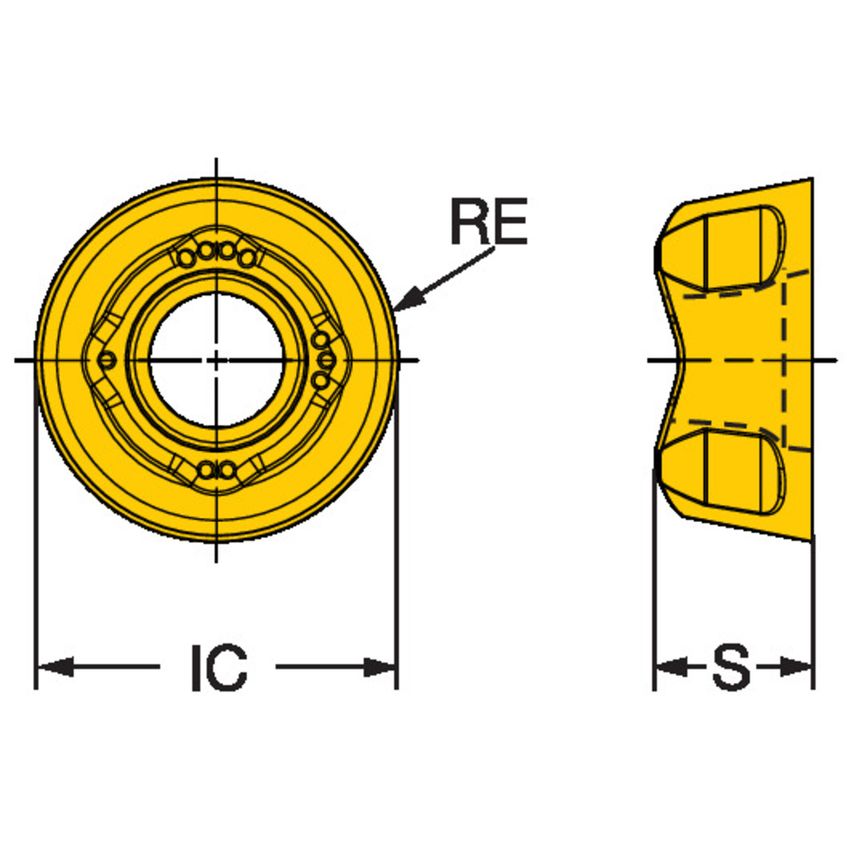

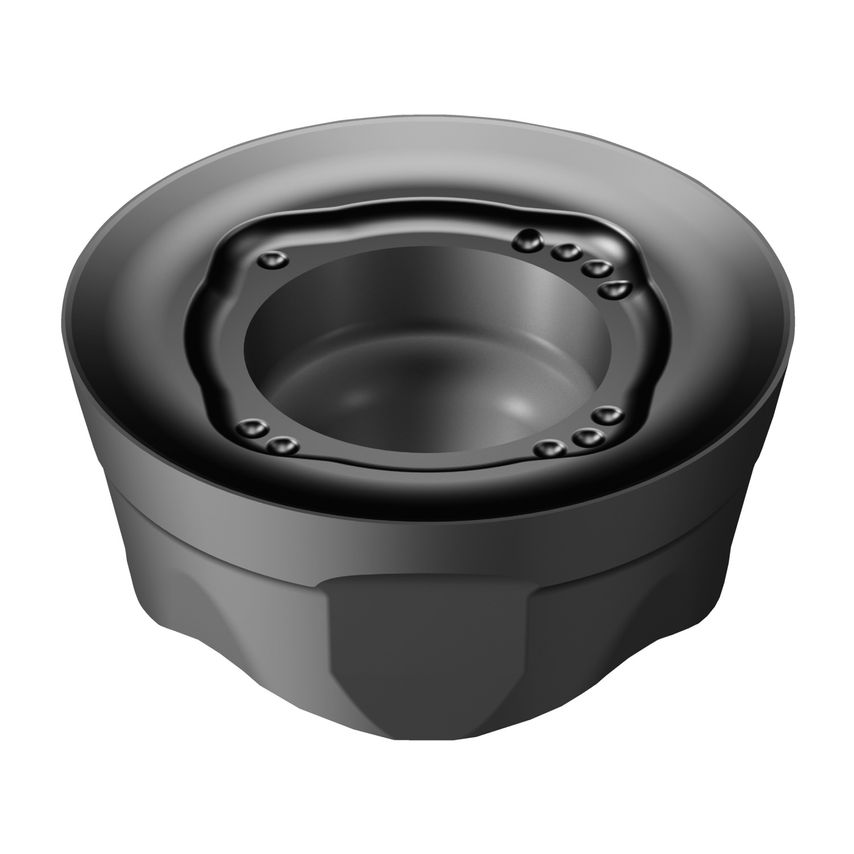

Product Range: CoroMill 600Tool Type: Profile millingVersatile round-insert profile milling cutter- High-performance cutter for many applications- Secure machining with the iLock interface- Extra-close pitchApplication Area- Profile milling- Roughing to semi-finishing- Ramping capacity- Diameter: 25-100 mm (1-2.5 inch)- Aerospace, energy, general engineering applications
| MFR Part No. | 6411701 |
| Unit Measured | Metric |
| Fixing Hole Diameter | 4.5mm |
| Hand Preference | Neutral |
| Finish/Coating | TiAlN |
| Cutting Edge Count | 4 |
| Corner Radius | 5mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 600 - Size 1045 |
| Insert Style | Screw/Clamp |
| Grade | 1010 |
| Maximum Cutting Depth | 5mm |
| Inscribed Circle | 10mm |
| Insert Thickness | 4.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 5mm |
| Insert Shape | Round |
| CoroPak | 17.1 |
| Inscribed Circle Diameter | 10mm |
| Through Hole Function Property | Yes |
