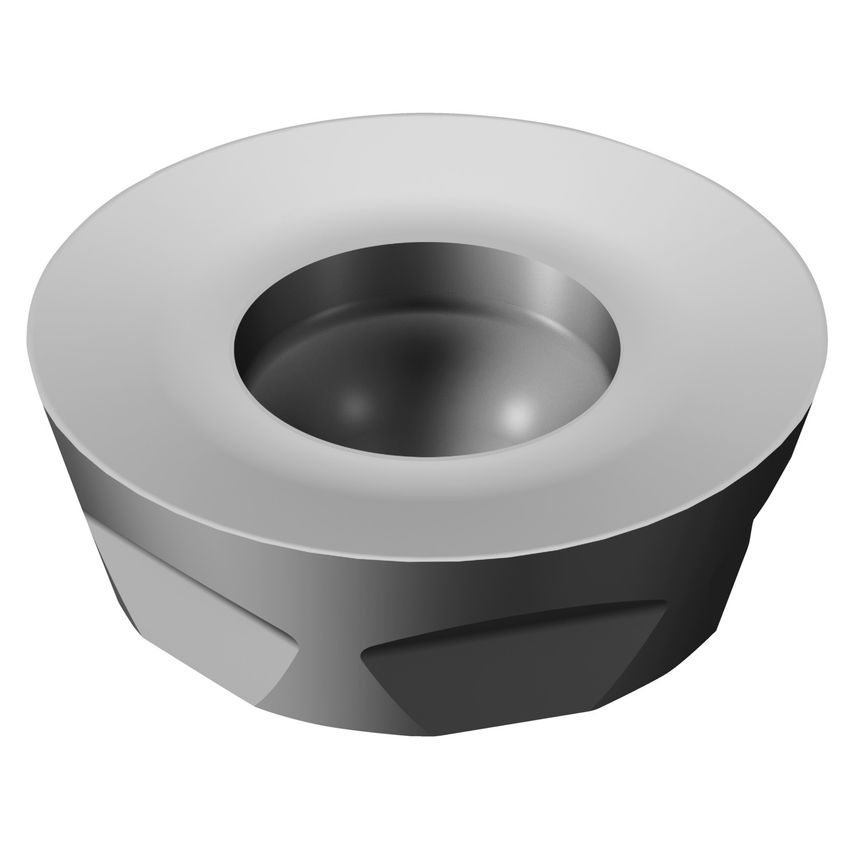

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Corner Radius | 4mm |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 4mm |
| MFR Part No. | 7100973 |
| Hand Preference | Neutral |
| Fixing Hole Diameter | 2.8mm |
| Cutting Edge Count | 4 |
| Maximum Cutting Depth | 4mm |
| Finish/Coating | AlTiCrN |
| Insert Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Insert Shape | Round |
| Inscribed Circle | 8mm |
| Grade | 1130 |
| Inscribed Circle Diameter | 8mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Insert Size/Shape | CoroMill 300 -0828 |
| Insert Thickness | 2.78mm |
| Coating Type | AlTiCrN |
| CoroPak | 17.2 |
| Insert Mounting Style | Screw/Clamp |
