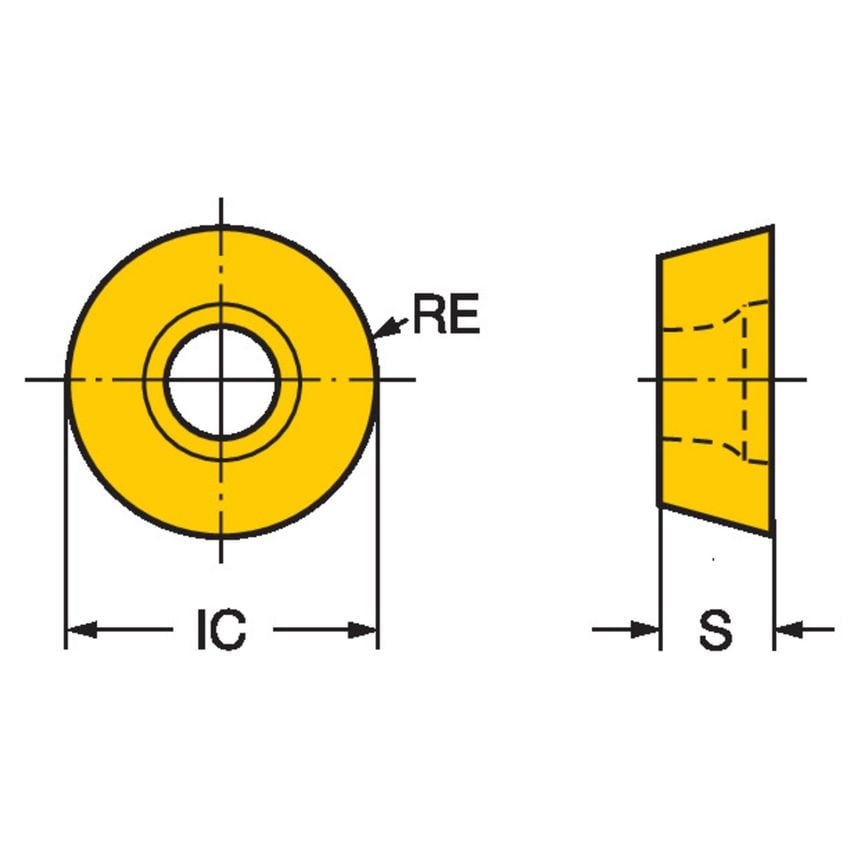

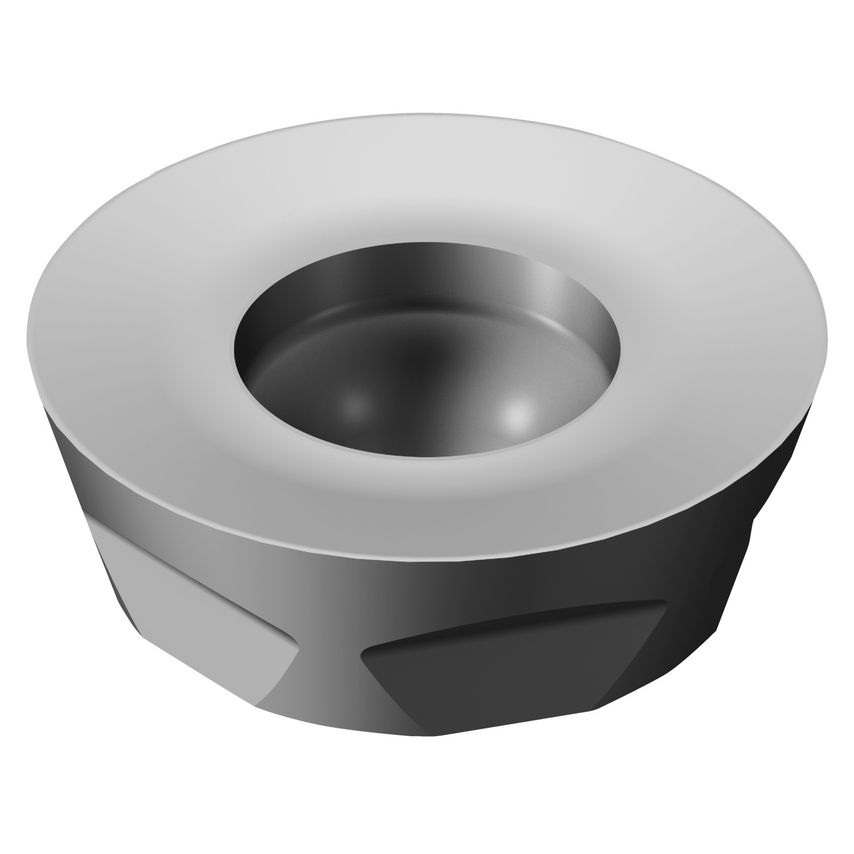

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| CoroPak | 17.2 |
| Insert Mounting Style | Screw/Clamp |
| Corner Radius | 8mm |
| Insert Thickness | 4.7625mm |
| Insert Shape | Round |
| Finish/Coating | AlTiCrN |
| Grade | 1130 |
| Insert Size/Shape | CoroMill 300 -1648 |
| Inscribed Circle | 16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 4mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 7100992 |
| Insert Style | Screw/Clamp |
| Hand Preference | Neutral |
| Fixing Hole Diameter | 5.7mm |
| Unit Measured | Metric |
| Maximum Cutting Depth | 4mm |
| Coating Type | AlTiCrN |
| Cutting Edge Count | 6 |
| Coating Process Type | PVD |
| Inscribed Circle Diameter | 16mm |
