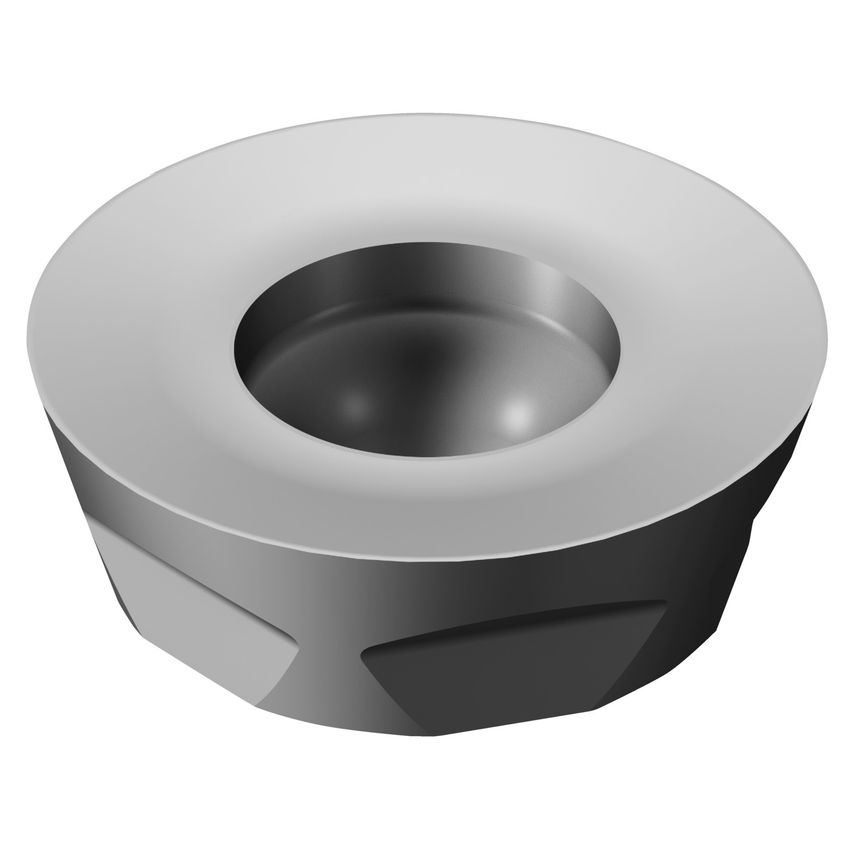

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Insert Size/Shape | CoroMill 300 -2570 |
| Maximum Cutting Depth | 3.72mm |
| Fixing Hole Diameter | 7.6mm |
| CoroPak | 17.2 |
| Coating Type | AlTiCrN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Thickness | 7.94mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Inscribed Circle | 25.4mm |
| Cutting Edge Count | 8 |
| Finish/Coating | AlTiCrN |
| Inscribed Circle Diameter | 25.4mm |
| Hand Preference | Neutral |
| Insert Shape | Round |
| Insert Mounting Style | Screw/Clamp |
| Maximum Depth of Cut | 3.72mm |
| Grade | 1130 |
| Unit Measured | Imperial |
| Corner Radius | 12.7mm |
| MFR Part No. | 7100997 |
| Insert Style | Screw/Clamp |
