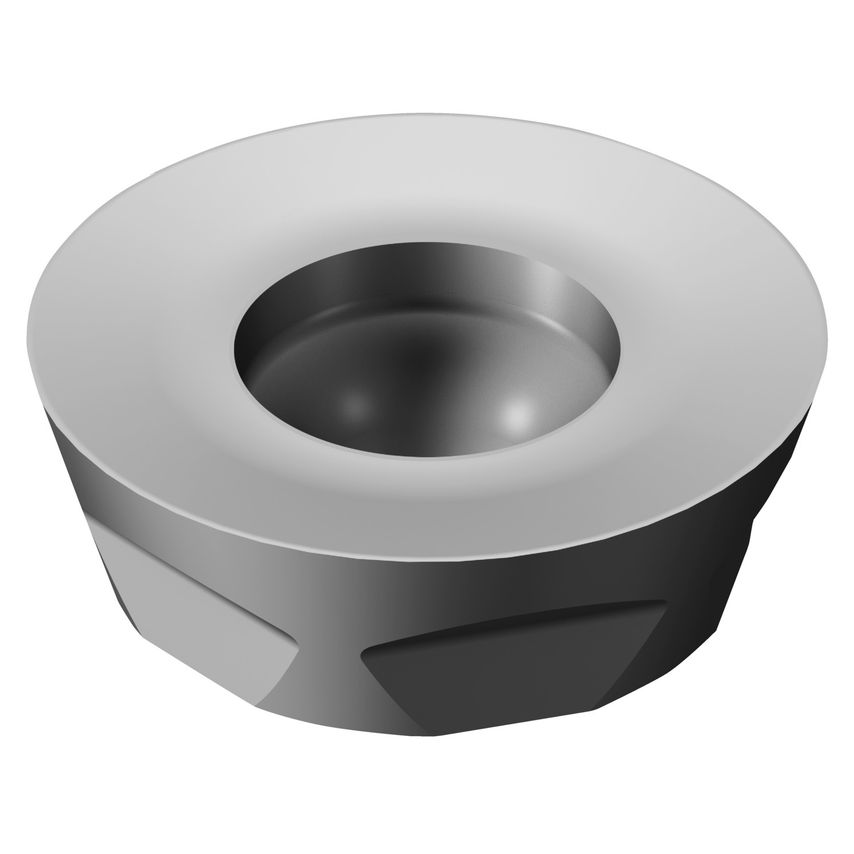

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Coating Process Type | PVD |
| MFR Part No. | 7100996 |
| Fixing Hole Diameter | 7mm |
| Maximum Depth of Cut | 2.93mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Screw/Clamp |
| Maximum Cutting Depth | 2.93mm |
| Through Hole Function Property | Yes |
| Coating Type | AlTiCrN |

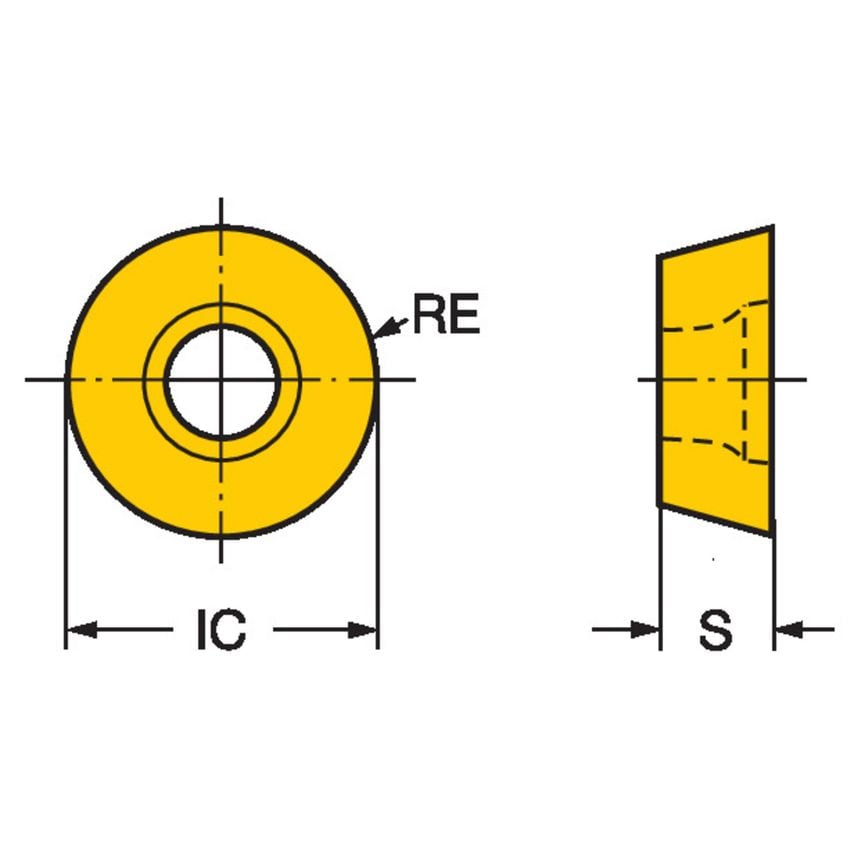

| Inscribed Circle | 20mm |
| CoroPak | 17.2 |
| Hand Preference | Neutral |
| Insert Style | Screw/Clamp |
| Cutting Edge Count | 8 |
| Grade | 1130 |
| Finish/Coating | AlTiCrN |
| Insert Size/Shape | CoroMill 300 -2060 |
| Corner Radius | 10mm |
| Inscribed Circle Diameter | 20mm |
| Unit Measured | Metric |
| Insert Shape | Round |
| Insert Thickness | 6.48mm |
