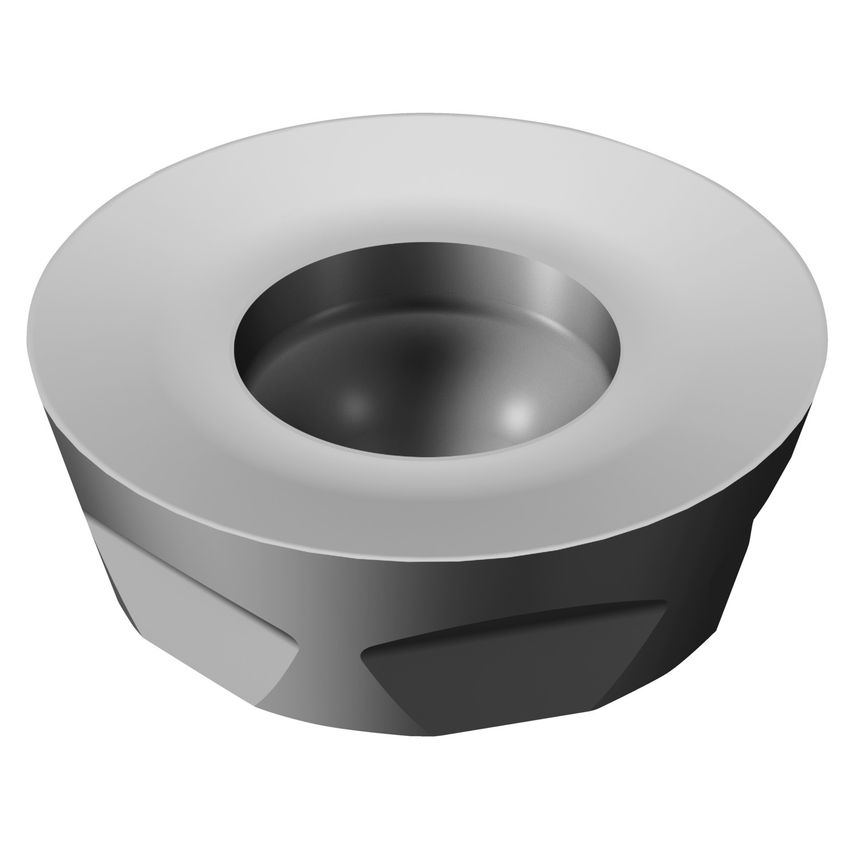

Product Range: CoroMill 300CoroMill 300 is a round insert cutter for a broad range of operations such as face milling, pocketing, and profiling. Its light cutting action allows for smooth entries and exits and for use of extended tool set-ups.The cutters generate low cutting forces and little heat when machining with small depths of cut. This allows the table feed to be increased five to ten times compared to general machining.Features & Benefits- Universal positive round insert concept- 3 - 8 Cutting edges- Internal coolantApplication- Full slot milling- Face milling- Ramping- Profiling- Pocket milling
| Through Hole Function Property | Yes |
| Insert Shape | Round |
| Maximum Depth of Cut | 2.93mm |
| Inscribed Circle | 20mm |
| Insert Size/Shape | CoroMill 300 -2060 |
| Inscribed Circle Diameter | 20mm |
| MFR Part No. | 7100993 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 10mm |
| Fixing Hole Diameter | 7mm |
| Cutting Edge Count | 8 |
| Insert Style | Screw/Clamp |
| Finish/Coating | AlTiCrN |
| Hand Preference | Neutral |
| Coating Type | AlTiCrN |
| Maximum Cutting Depth | 2.93mm |
| Coating Process Type | PVD |
| CoroPak | 17.2 |
| Insert Mounting Style | Screw/Clamp |
| Grade | 1130 |
| Insert Thickness | 6.48mm |
| Unit Measured | Metric |
