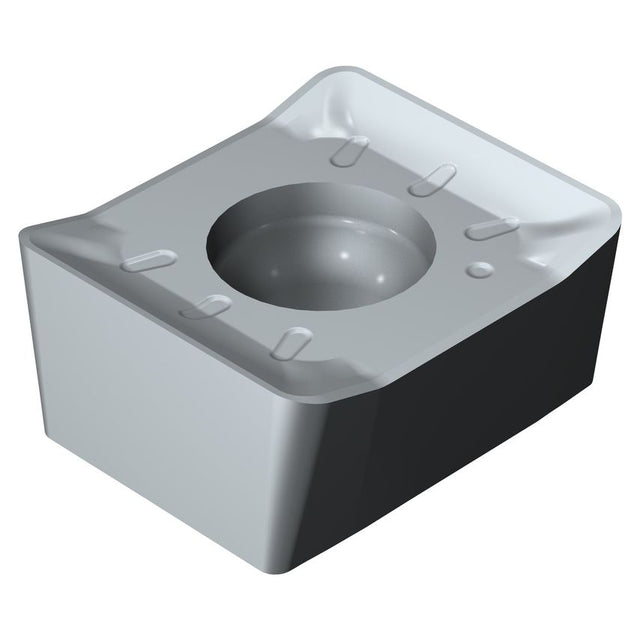

Product Range: CoroMill 331Multi-purpose side and face milling cutter.Features & Benefits- For radially wide shoulders, back facing and gang milling- 2 cutting edges- Large radius assortment- Cartridges for security- Internal coolant
| Cutting Edge Count | 4 |
| Hand Preference | Neutral |
| Corner Radius | 0.8mm |
| Insert Thickness | 4.5mm |
| Finish/Coating | AlTiCrN |
| Unit Measured | Metric |
| Fixing Hole Diameter | 2.9mm |
| Insert Style | Screw/Clamp |
| CoroPak | 18.1 |
| Insert Size/Shape | CoroMill 331 -05 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Grade | 1130 |
| Face Land Angle | 6\u00b0 |
| Insert Mounting Style | Screw/Clamp |
| Coating Type | AlTiCrN |
| Insert Rake Angle | 13\u00b0 |
| Insert Shape | Rectangle |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 5.7mm |
| MFR Part No. | 7295502 |
| Face Land Width | 0.18mm |
| Maximum Cutting Depth | 5.7mm |
| Insert Width | 9.5mm |
| Wiper Edge Length | 1.2mm |
