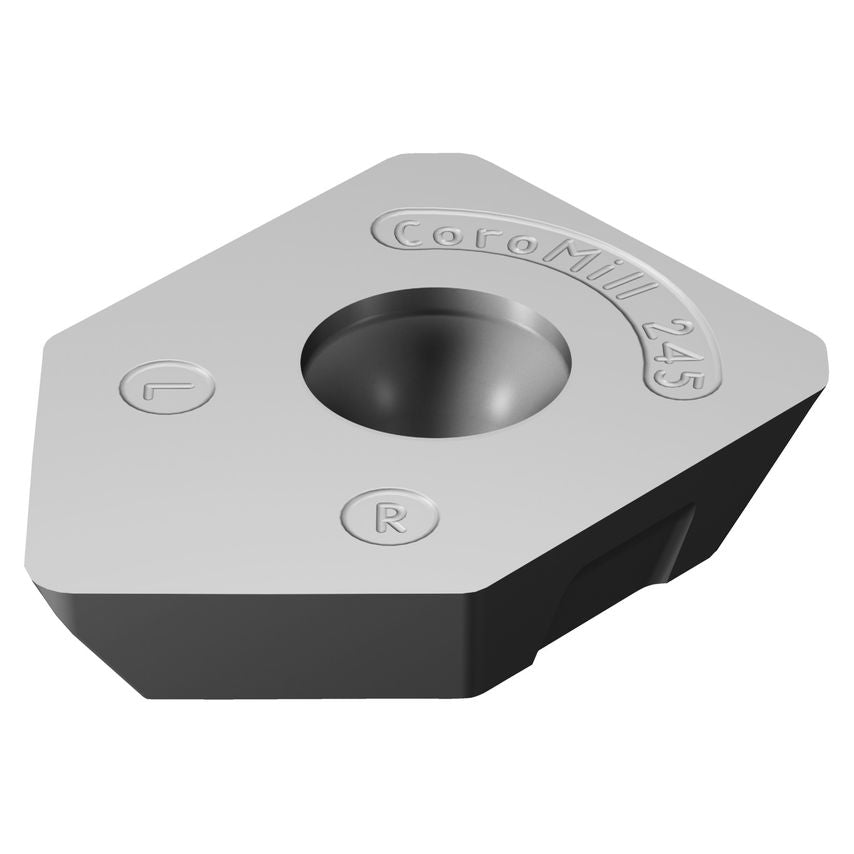

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials

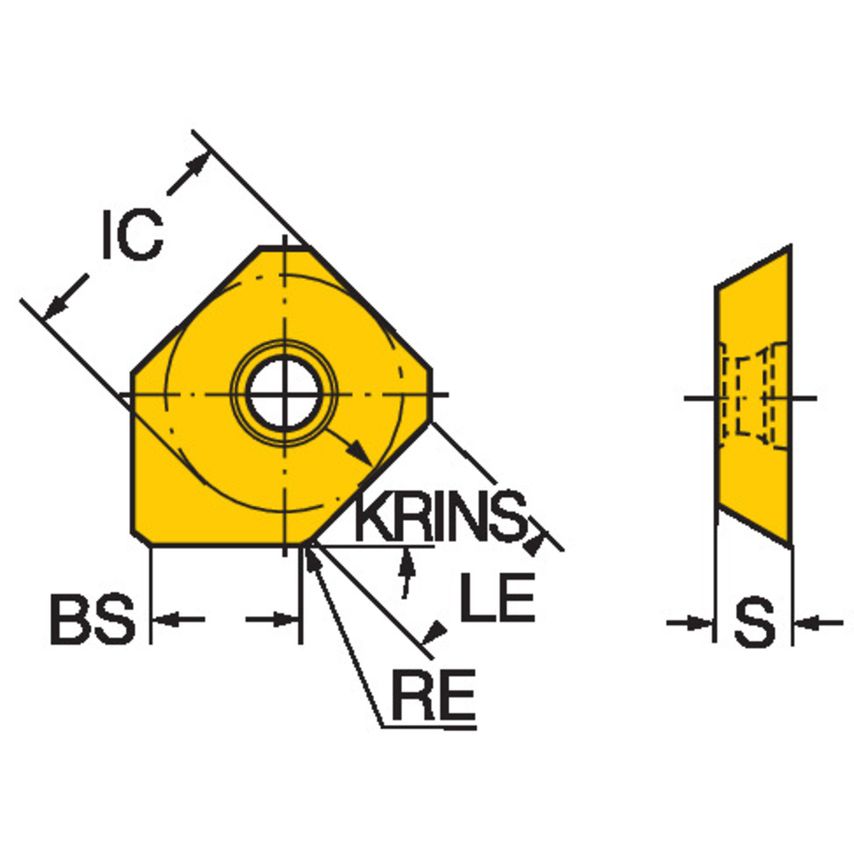

| Maximum Cutting Depth | 9.75mm |
| Insert Style | Screw/Clamp |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Insert Thickness | 6.1mm |
| Hand Preference | Right |
| Insert Shape | Square |
| Fixing Hole Diameter | 5.7mm |
| Inscribed Circle | 18mm |
| Wiper Edge Radius | 500mm |
| Corner Radius | 1mm |
| Cutting Edge Count | 1 |
| Finish/Coating | AlTiCrN |
| Wiper Edge Length | 10.8mm |
| MFR Part No. | 7101120 |
| Unit Measured | Metric |
| Coating Type | AlTiCrN |
| Maximum Depth of Cut | 9.75mm |
| Grade | 1130 |
| Inscribed Circle Diameter | 18mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 18.1 |
| Coating Process Type | PVD |
| Insert Size/Shape | CoroMill 245 -18T6 |
| Insert Rake Angle | 0\u00b0 |
