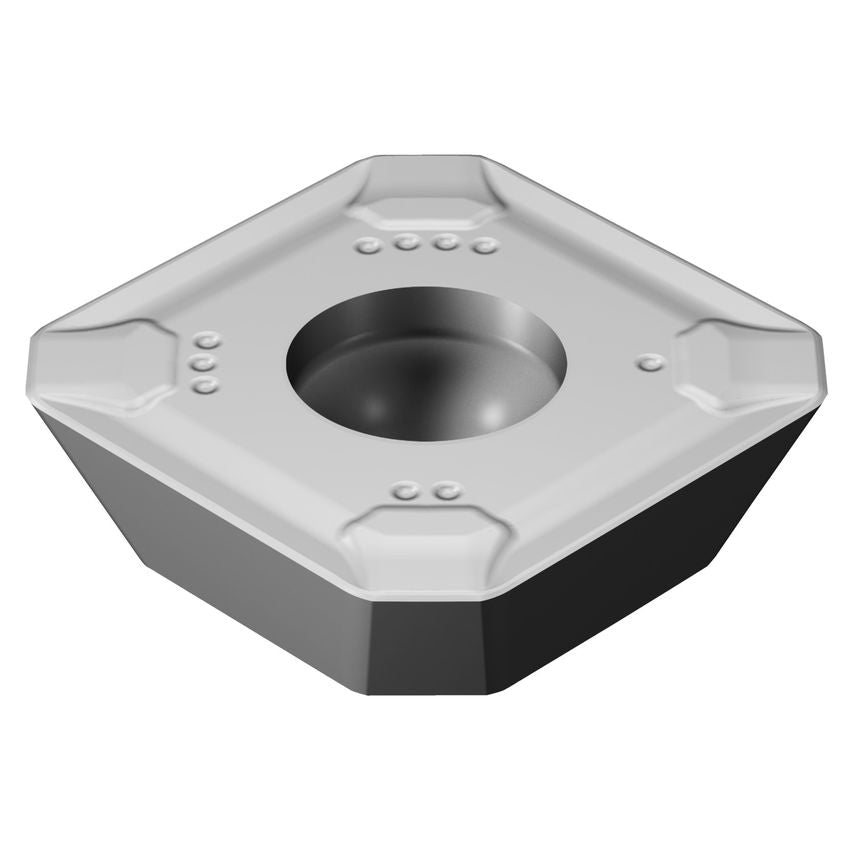

Tool type: Face millingLight-cutting face mill for heavy roughing and mirror finishing. Milling cutters for high metal removal and mirror finish. The cutter is designed with enhanced corners to reduce burr formation and frittering of the component.Features & Benefits- First choice for mixed production- 4 cutting edges- Shim for extra security- True 45 degrees- Close tolerance combined with the wiper insert for superior surface finish- Wide range of grades and geometries including ceramic and CBN grades- Multipurpose tool. Face milling, boring possibilities, ramping and plunge millingApplicationFace milling applications in all types of materials
| Insert Style | Screw/Clamp |
| Hand Preference | Right |
| Finish/Coating | AlTiCrN |
| Fixing Hole Diameter | 4.1mm |
| Insert Shape | Square |
| MFR Part No. | 7101119 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 6.5mm |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 6.5mm |
| Inscribed Circle Diameter | 13.4mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Thickness | 3.96875mm |
| Insert Size/Shape | CoroMill 245 -12T3 |
| Coating Type | AlTiCrN |
| Through Hole Function Property | Yes |
| CoroPak | 18.1 |
| Unit Measured | Metric |
| Inscribed Circle | 13.4mm |
| Cutting Edge Count | 4 |
| Wiper Edge Length | 2.03mm |
| Corner Radius | 1.5mm |
| Insert Rake Angle | 15\u00b0 |
| Grade | 1130 |
