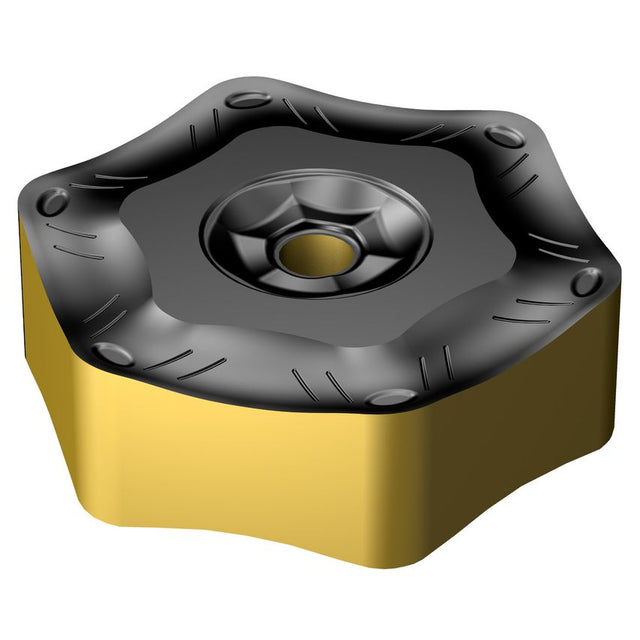

Product Range: CoroMill S-60Tool Type: Face millingMulti-edge face milling cutterCoroMill S-60 is a close-pitch cutter for machining in cast iron. The close pitch and high number of cutting edges increase productivity and reduce costs.Features & Benefits- Roughing cutter for high metal removal rate in cast iron- 12 cutting edges- Extra-close pitch- Easy insert indexing for low setup time
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 3220 |
| Insert Rake Angle | 15\u00b0 |
| Inscribed Circle | 16.2mm |
| Inscribed Circle Diameter | 16.2mm |
| Coating Process Type | CVD |
| Insert Shape | Hexagon |
| Insert Mounting Style | Screw/Clamp |
| CoroPak | 19.2 |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Size/Shape | Mill S-60 HN0905xxxN |
| Insert Style | Screw/Clamp |
| Corner Radius | 2mm |
| Through Hole Function Property | Yes |
| Coating Type | TiCN+Al2O3+TiN |
| MFR Part No. | 6924057 |
| Cutting Edge Count | 12 |
| Hand Preference | Neutral |
| Insert Thickness | 5.56mm |
| Fixing Hole Diameter | 2.2mm |
