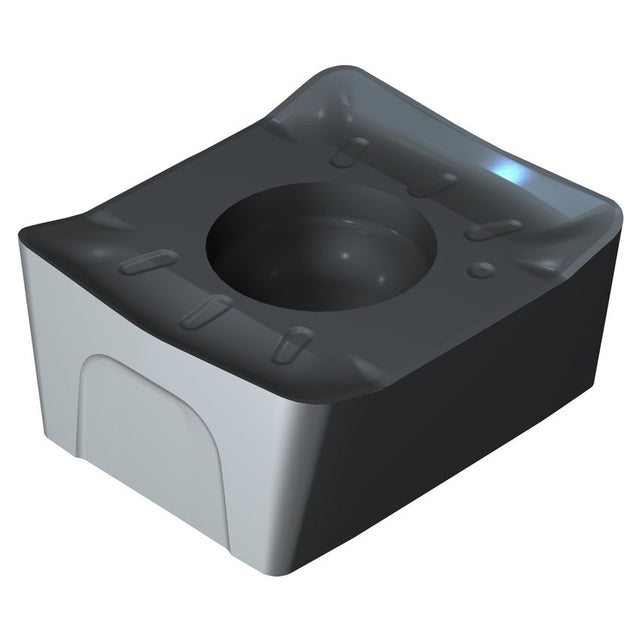

Product Range: CoroMill 331Multi-purpose side and face milling cutter.Features & Benefits- For radially wide shoulders, back facing and gang milling- 2 cutting edges- Large radius assortment- Cartridges for security- Internal coolant
| Face Land Angle | 0\u00b0 |
| Wiper Edge Length | 1.2mm |
| Fixing Hole Diameter | 4.6mm |
| Insert Rake Angle | 13\u00b0 |
| Coating Process Type | PVD |
| Insert Thickness | 4.984mm |
| Finish/Coating | TiAlN |
| Insert Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 331 -14 |
| Maximum Depth of Cut | 13.7mm |
| Maximum Cutting Depth | 13.7mm |
| Face Land Width | 0.15mm |
| MFR Part No. | 7295529 |
| CoroPak | 18.2 |
| Insert Width | 11.5mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Hand Preference | Neutral |
| Grade | S30T |
| Cutting Edge Count | 4 |
| Insert Shape | Rectangle |
| Insert Mounting Style | Screw/Clamp |
| Coating Type | TiAlN |
| Corner Radius | 0.8mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
