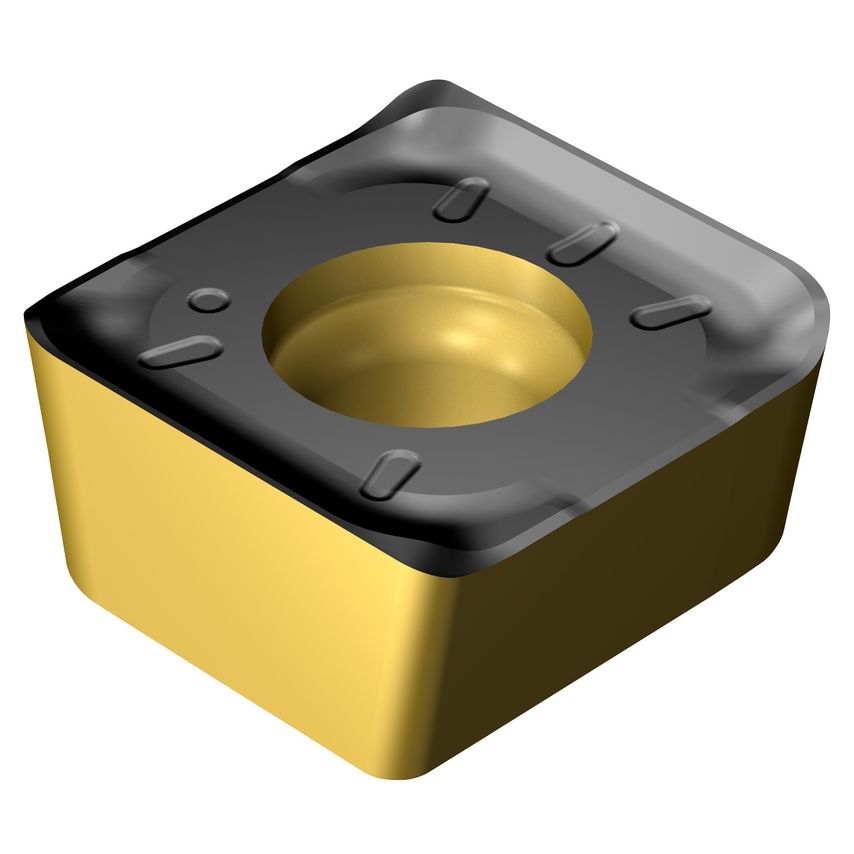

Product Range: CoroMill 331Multi-purpose side and face milling cutter.Features & Benefits- For radially wide shoulders, back facing and gang milling- 2 cutting edges- Large radius assortment- Cartridges for security- Internal coolant
| Insert Style | Screw/Clamp |
| Finish/Coating | TiCN+Al2O3+TiN |
| Unit Measured | Metric |
| Coating Process Type | CVD |
| Insert Size/Shape | CoroMill 331 -11 |
| Cutting Edge Count | 2 |
| Insert Width | 11.5mm |
| Insert Shape | Rectangle |
| CoroPak | 19.1 |
| Through Hole Function Property | Yes |
| Corner Radius | 1.52mm |
| Grade | 4330 |
| Maximum Depth of Cut | 10.7mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 10.7mm |
| Hand Preference | Right |
| Wiper Edge Length | 1.2mm |
| Coating Type | TiCN+Al2O3+TiN |
| Insert Mounting Style | Screw/Clamp |
| MFR Part No. | 7295713 |
| Insert Thickness | 5mm |
| Fixing Hole Diameter | 4.6mm |
