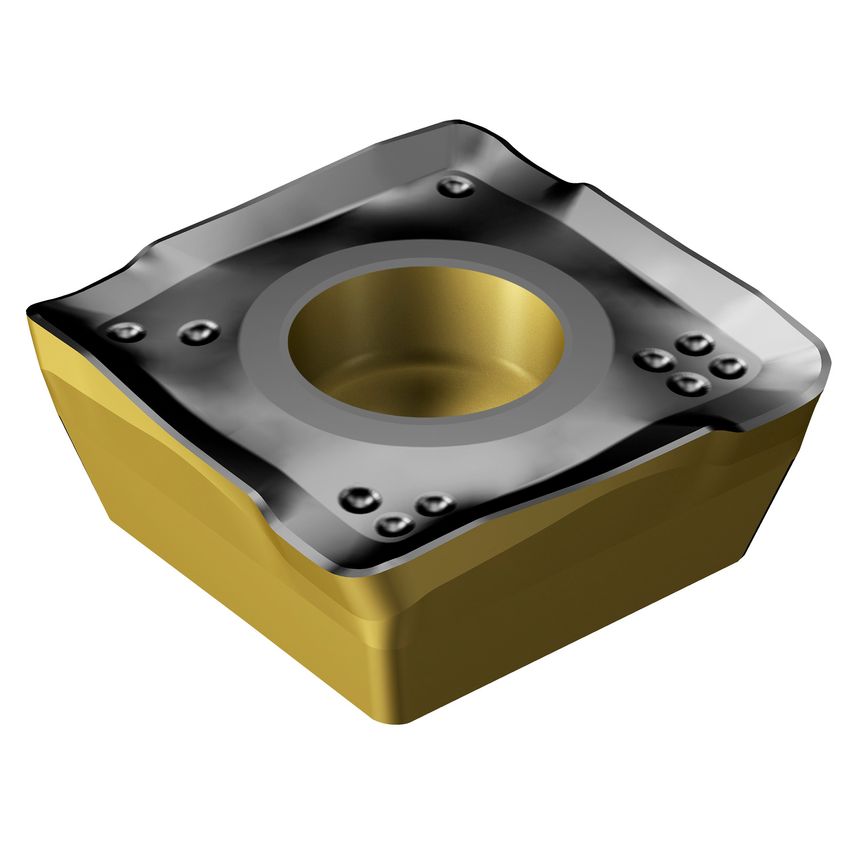

Product Range: CoroMill 490Tool Type: Shoulder millingFeatures & Benefits- First choice for general and repeated shoulder milling- 4 cutting edges- Shim for extra security- Internal coolant- True 90 cuts without sharp steps- Sharp edge lines and burr-free, smooth profiles, which also efficiently reduces the need for a finishing operation- The light cutting performance provides an excellent surface finish and optimal utilization of low-powered machine tools. This also facilitates use of the cutter on extended tool assembliesApplicationGeneral and repeated shoulder milling, Face milling, Edging, Plunge milling, Slot milling, Roughing to finishing

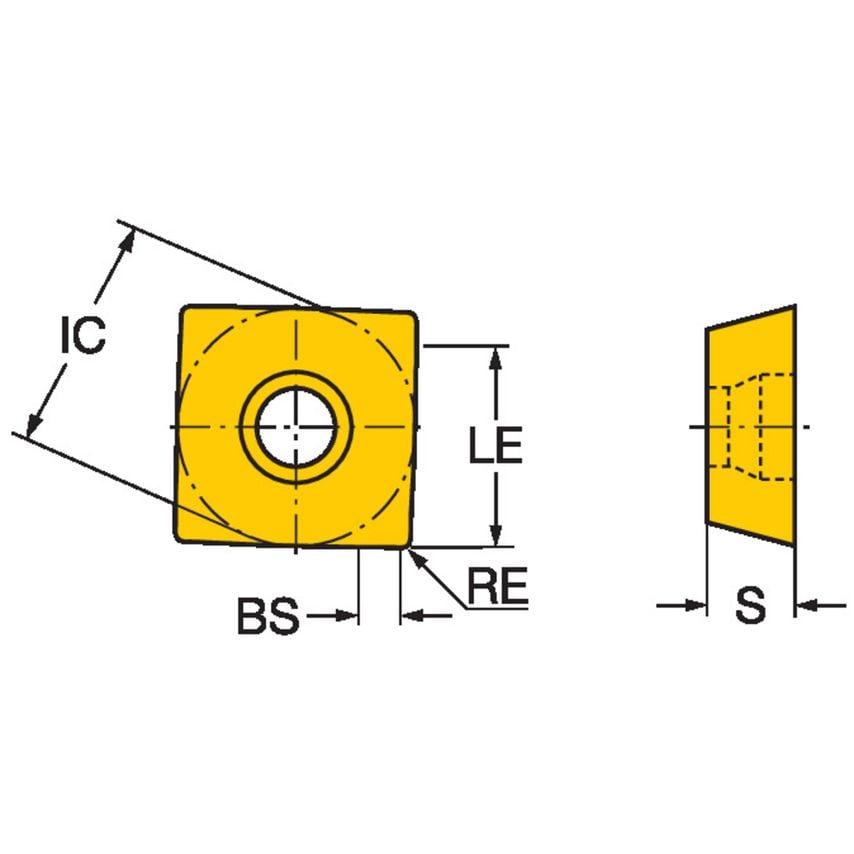

| Wiper Edge Length | 0.9mm |
| Inscribed Circle | 13.8mm |
| Coating Type | TiCN+Al2O3+TiN |
| Maximum Cutting Depth | 10mm |
| Insert Thickness | 3.9mm |
| Insert Size/Shape | CoroMill 490 -1404 |
| Insert Shape | Square |
| Through Hole Function Property | Yes |
| CoroPak | 18.2 |
| Insert Style | Screw/Clamp |
| Unit Measured | Metric |
| Insert Mounting Style | Screw/Clamp |
| Cutting Edge Count | 4 |
| Coating Process Type | CVD |
| Maximum Depth of Cut | 10mm |
| Grade | 4340 |
| Hand Preference | Right |
| Finish/Coating | TiCN+Al2O3+TiN |
| Fixing Hole Diameter | 4.1mm |
| Corner Radius | 2mm |
| MFR Part No. | 7564359 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle Diameter | 13.8mm |
