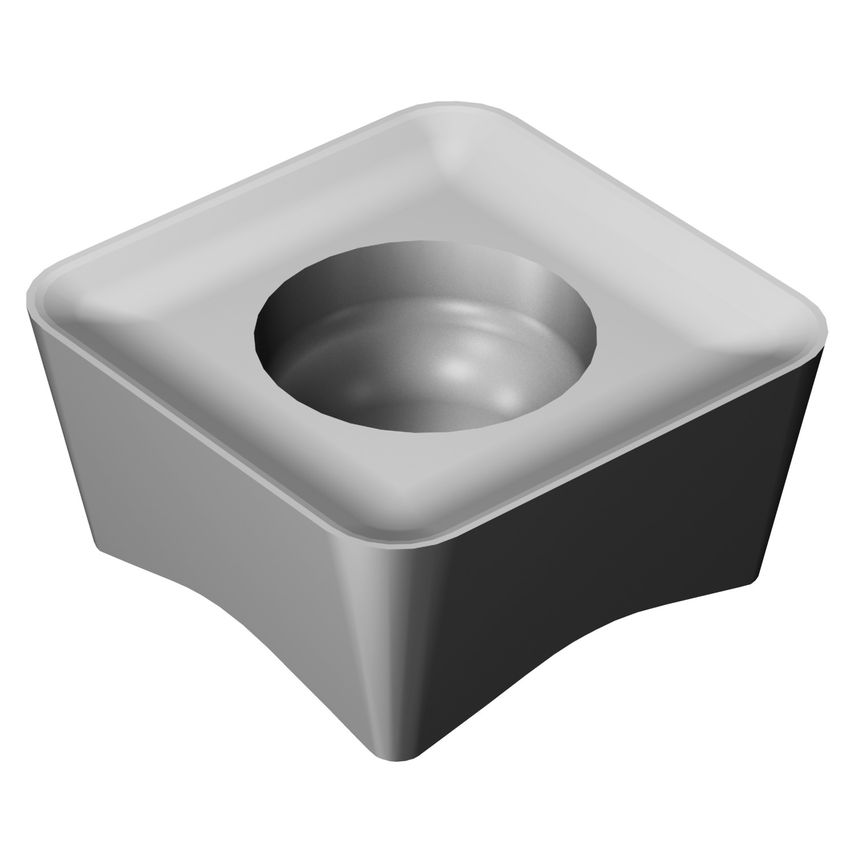

Product Range: CoroMill 415Tool Type: High-feed millingSmall-diameter high feed face milling cutterFeatures & Benefits- Cost-efficient high feed milling in small diameters- 4 cutting edges- Internal coolant- Unique iLock insert seat interface
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1130 |

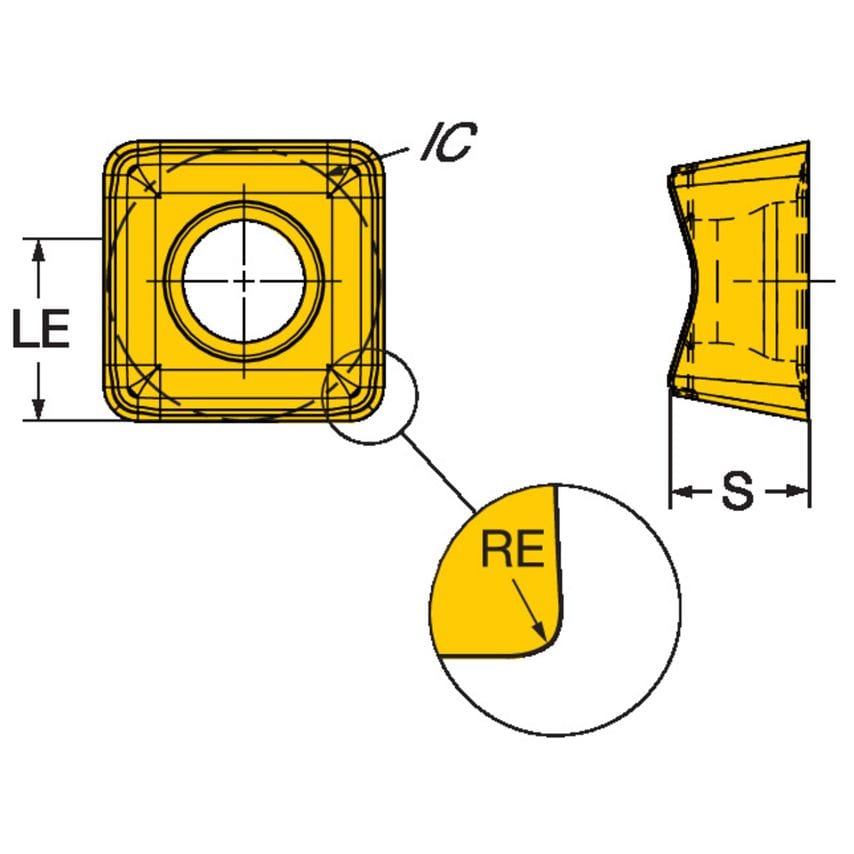

| Inscribed Circle | 5mm |
| Cutting Edge Count | 4 |
| Insert Thickness | 2.21mm |
| Through Hole Function Property | Yes |
| Coating Type | AlTiCrN |
| Insert Rake Angle | 5\u00b0 |
| Hand Preference | Neutral |
| Insert Mounting Style | Screw/Clamp |
| Corner Radius | 0.6mm |
| Fixing Hole Diameter | 2.2mm |
| Inscribed Circle Diameter | 5mm |
| Insert Size/Shape | CoroMill 415 -0502 |
| MFR Part No. | 7082568 |
| Coating Process Type | PVD |
| Insert Shape | Square |
| CoroPak | 18.1 |
| Insert Style | Screw/Clamp |
| Unit Measured | Metric |
| Finish/Coating | AlTiCrN |
| Maximum Depth of Cut | 0.85mm |
| Maximum Cutting Depth | 0.85mm |
