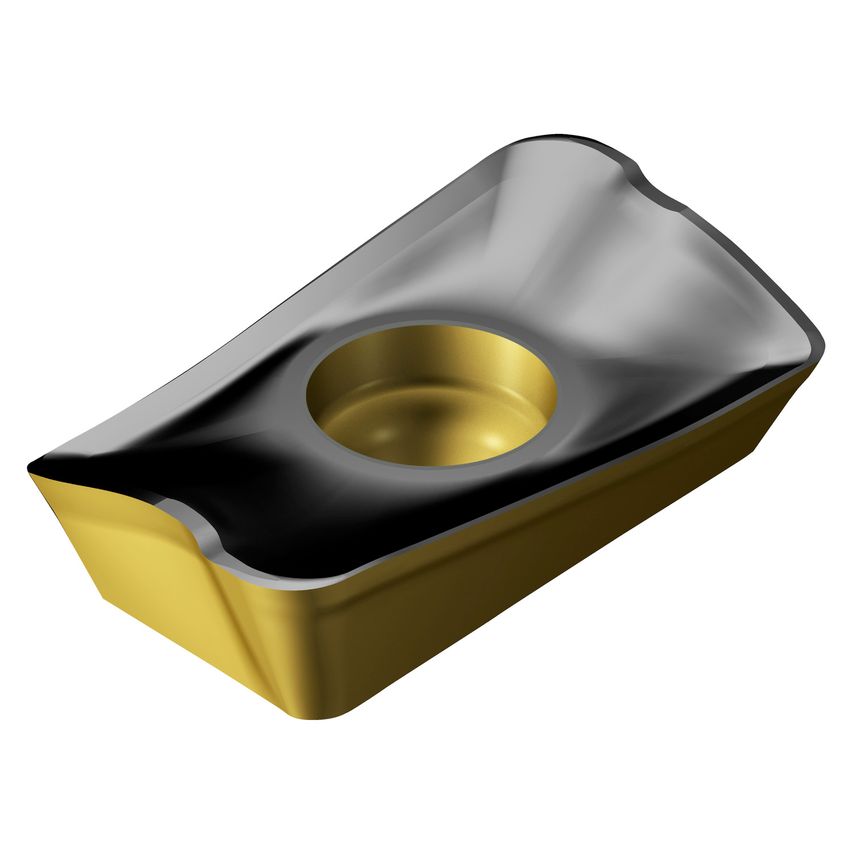

Product Range: CoroMill 390Tool Type: Shoulder millingVersatile shoulder milling cutters with ramping capability for mixed productionFeatures & Benefits- First choice for flexible shoulder milling- 2 cutting edges- Ramping capabilities- Large radius assortment- Internal coolant- Close tolerances giving excellent surface finish and minimal mismatch- Large depth of cut and steep ramping capability- Oversized diameter for clearance is available
| CoroPak | 18.2 |
| Insert Width | 9.6mm |
| Insert Shape | Rectangle |
| MFR Part No. | 7564375 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 15.7mm |
| Corner Radius | 0.4mm |
| Maximum Cutting Depth | 15.7mm |
| Insert Style | Screw/Clamp |
| Grade | 4340 |
| Hand Preference | Right |
| Fixing Hole Diameter | 4.1mm |
| Finish/Coating | TiCN+Al2O3+TiN |
| Cutting Edge Count | 2 |
| Wiper Edge Length | 1mm |
| Coating Process Type | CVD |
| Insert Size/Shape | CoroMill 390 -1704 |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Coating Type | TiCN+Al2O3+TiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Thickness | 4.7625mm |
