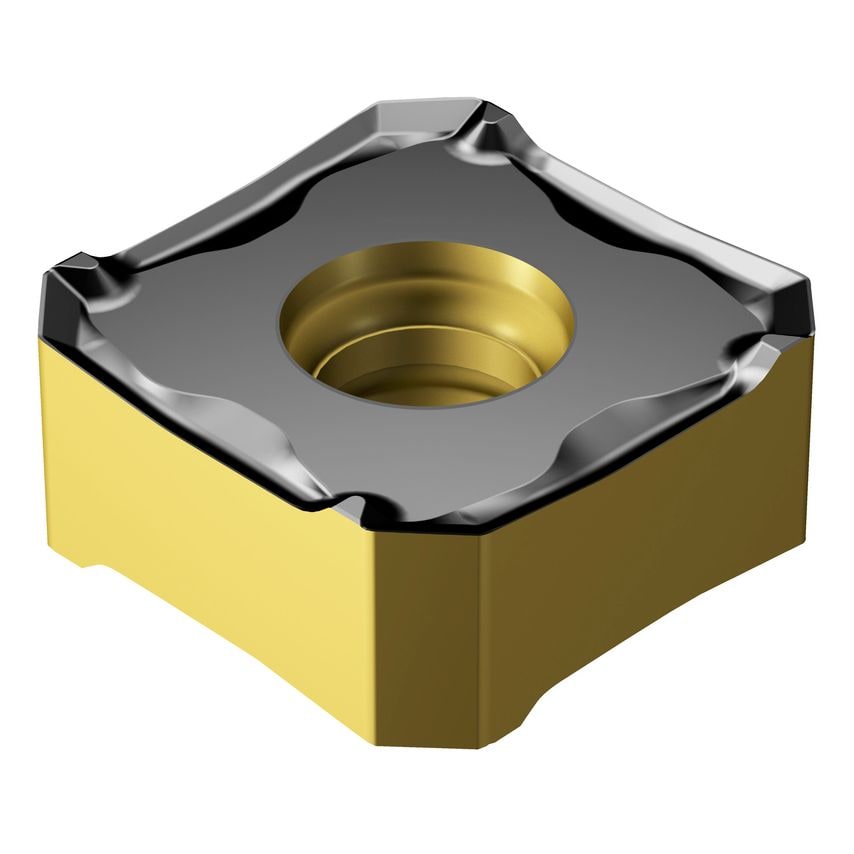

Product Range: CoroMill 345Tool Type: Face millingFirst choice for highly productive face millingFeatures & Benefits- First choice for high productivity- 8 cutting edges- Shim for extra security- Internal coolantApplication- Face milling- Roughing to finishing- Maximum depth of cut 6 mm (0.236 inch)
| Insert Style | Screw/Clamp |
| Insert Size/Shape | CoroMill 345 -1305 |
| Wiper Edge Radius | 107mm |
| Weight | 10g |
| Hand Preference | Right |
| Cutting Edge Count | 8 |
| Coating Process Type | CVD |
| Through Hole Function Property | Yes |
| Fixing Hole Diameter | 4.8mm |
| Maximum Cutting Depth | 6mm |
| Inscribed Circle | 13mm |
| Insert Shape | Square |
| Inscribed Circle Diameter | 13mm |
| Insert Thickness | 5.05mm |
| MFR Part No. | 7564422 |
| CoroPak | 18.2 |
| Coating Type | TiCN+Al2O3+TiN |
| Wiper Edge Length | 2mm |
| Insert Rake Angle | 30\u00b0 |
| Grade | 4330 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Finish/Coating | TiCN+Al2O3+TiN |
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| Corner Radius | 0.8mm |
| Maximum Depth of Cut | 6mm |
